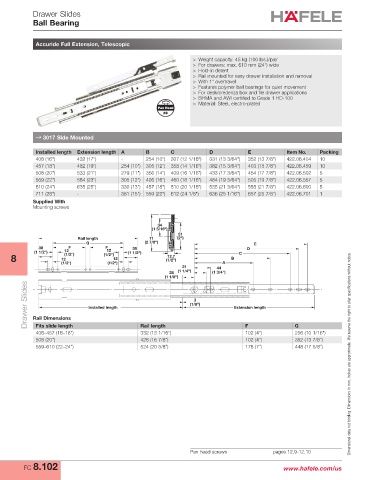

Drawer Slides
Ball Bearing

Accuride Full Extension, Telescopic

> Weight capacity: 45 kg (100 lbs.)/pair
> For drawers: max. 610 mm (24") wide
> Hold-in detent
> Rail mounted for easy drawer installation and removal
> With 1" overtravel
> Features polymer ball bearings for quiet movement
> For desk/credenza box and file drawer applications
> BHMA and AWI certified to Grade 1 HD-100
> Material: Steel, electro-plated
Pan Head
#8

→ 3017 Side Mounted

Installed length Extension length A B C D E Item No. Packing
406 (16") 432 (17") - 254 (10") 307 (12 1/16") 331 (13 3/64") 352 (13 7/8") 422.06.404 10
457 (18") 482 (19") 254 (10") 305 (12") 358 (14 1/16") 382 (15 3/64") 403 (15 7/8") 422.06.459 10
508 (20") 533 (21") 279 (11") 356 (14") 409 (16 1/16") 433 (17 3/64") 454 (17 7/8") 422.06.502 5
559 (22") 584 (23") 305 (12") 406 (16") 460 (18 1/16") 484 (19 3/64") 505 (19 7/8") 422.06.557 5
610 (24") 635 (25") 330 (13") 457 (18") 510 (20 1/16") 535 (21 3/64") 555 (21 7/8") 422.06.600 5
711 (28") - 381 (15") 559 (22") 612 (24 1/8") 636 (25 1/16") 657 (25 7/8") 422.06.701 1
Supplied With
Mounting screws

34
(1 5/16")
51
Rail length 71 (2")
G (2 7/8") E
38 F F 38 D
12
(1 1/2") 12 (1/2") (1 1/2") C
(1/2")
8 12 12 (1/2") B
12.7
(1/2") (1/2") A
31 44
28 (1 1/4") (1 3/4")
(1 1/8")
Drawer Slides Rail Dimensions Installed length (1/8") Extension length
3

Fits slide length
332 (13 1/16")
256 (10 1/16")
102 (4")
406–457 (16–18") Rail length F G
508 (20") 428 (16 7/8") 102 (4") 352 (13 7/8")
559–610 (22–24") 524 (20 5/8") 178 (7") 448 (17 5/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Pan head screws pages 12.9-12.10
FC 8.102 www.hafele.com/us
