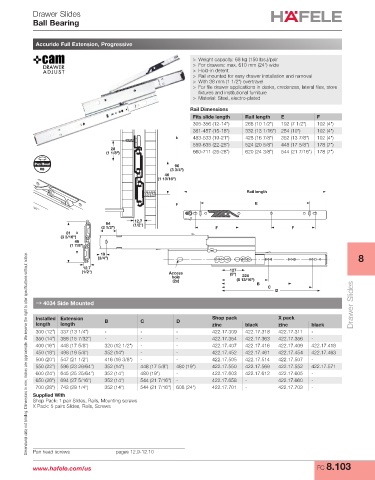

Page 781 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Ball Bearing

Accuride Full Extension, Progressive

> Weight capacity: 68 kg (150 lbs.)/pair
> For drawers: max. 610 mm (24") wide
> Hold-in detent
> Rail mounted for easy drawer installation and removal
> With 38 mm (1 1/2") overtravel
> For file drawer applications in desks, credenzas, lateral files, store
fixtures and institutional furniture
> Material: Steel, electro-plated

Rail Dimensions
Fits slide length Rail length E F
305-356 (12-14") 268 (10 1/2") 192 (7 1/2") 102 (4")
381-457 (15-18") 332 (13 1/16") 254 (10") 102 (4")
483-533 (19-21") 428 (16 7/8") 352 (13 7/8") 102 (4")
559-635 (22-25") 524 (20 5/8") 448 (17 5/8") 178 (7")
28
(1 1/8") 660-711 (26-28") 620 (24 3/8") 544 (21 7/16") 178 (7")
Pan Head 96
#8 (3 3/4")
46
(1 13/16")
Rail length

E

12.7
64 (1/2")
(2 1/2") F F
81
(3 3/16")
46
(1 7/8")
19
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(3/4") 8
12.7
(1/2") Access 127
(5")
hole 224
(2x) (8 13/16")
B
C
D
→ 4034 Side Mounted Drawer Slides
Installed Extension Shop pack X pack
length length B C D zinc black zinc black
300 (12") 337 (13 1/4") - - - 422.17.309 422.17.318 422.17.311 -
350 (14") 386 (15 7/32") - - - 422.17.354 422.17.363 422.17.356 -
400 (16") 448 (17 5/8") 320 (12 1/2") - - 422.17.407 422.17.416 422.17.409 422.17.418
450 (18") 498 (19 5/8") 352 (14") - - 422.17.452 422.17.461 422.17.454 422.17.463
500 (20") 547 (21 1/2") 416 (16 3/8") - - 422.17.505 422.17.514 422.17.507 -
550 (22") 596 (23 29/64") 352 (14") 448 (17 5/8") 480 (19") 422.17.550 422.17.569 422.17.552 422.17.571
600 (24") 645 (25 25/64") 352 (14") 480 (19") - 422.17.603 422.17.612 422.17.605 -
650 (26") 694 (27 5/16") 352 (14") 544 (21 7/16") - 422.17.658 - 422.17.660 -
700 (28") 743 (29 1/4") 352 (14") 544 (21 7/16") 608 (24") 422.17.701 - 422.17.703 -
Supplied With
Shop Pack: 1 pair Slides, Rails, Mounting screws
X Pack: 5 pairs Slides, Rails, Screws

Pan head screws pages 12.9-12.10
