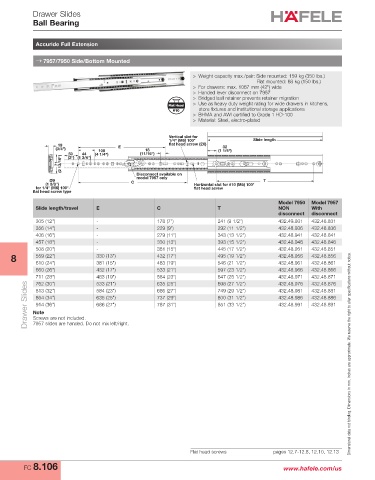

Drawer Slides
Ball Bearing

Accuride Full Extension

→ 7957/7950 Side/Bottom Mounted

> Weight capacity max./pair: Side mounted: 159 kg (350 lbs.)
Flat mounted: 68 kg (150 lbs.)
> For drawers: max. 1067 mm (42") wide
> Handed lever disconnect on 7957
> Bridged ball retainer prevents retainer migration
> Use as heavy duty weight rating for wide drawers in kitchens,
Flat Head
#10 store fixtures and institutional storage applications
> BHMA and AWI certified to Grade 1 HD-100
> Material: Steel, electro-plated

Vertical slot for
1/4" (M6) 100° Slide length
19 flat head screw (2X)
32
(3/4") 108 E 18 (1 1/4")
50 44 (4 1/4") (11/16")
(2 13/16")
(2") (1 3/4")
71
Disconnect available on
Ø9 C model 7957 only T
(1 3/8") Horizontal slot for #10 (M5) 100°
for 1/4" (M6) 100° flat head screw
flat head screw type
Model 7950 Model 7957
Slide length/travel E C T NON With
disconnect disconnect
305 (12") - 178 (7") 241 (9 1/2") 432.49.931 432.48.831
356 (14") - 229 (9") 292 (11 1/2") 432.48.936 432.48.836
406 (16") - 279 (11") 343 (13 1/2") 432.48.941 432.48.841
457 (18") - 330 (13") 393 (15 1/2") 432.48.946 432.48.846
508 (20") - 381 (15") 445 (17 1/2") 432.48.951 432.48.851
8 559 (22") 330 (13") 432 (17") 495 (19 1/2") 432.48.956 432.48.856
610 (24") 381 (15") 483 (19") 546 (21 1/2") 432.48.961 432.48.861
660 (26") 432 (17") 533 (21") 597 (23 1/2") 432.48.966 432.48.866
711 (28") 483 (19") 584 (23") 647 (25 1/2") 432.48.971 432.48.871
Drawer Slides Note 635 (25") 737 (29") 800 (31 1/2") 432.48.986 432.48.886 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
698 (27 1/2")
762 (30")
432.48.876
635 (25")
533 (21")
432.48.976
432.48.881
432.48.981
749 (29 1/2")
686 (27")
584 (23")
813 (32")
864 (34")
787 (31")
686 (27")
432.48.891
432.48.991
851 (33 1/2")
914 (36")
Screws are not included.
7957 slides are handed. Do not mix left/right.

Flat head screws pages 12.7-12.8, 12.10, 12.13
FC 8.106 www.hafele.com/us
