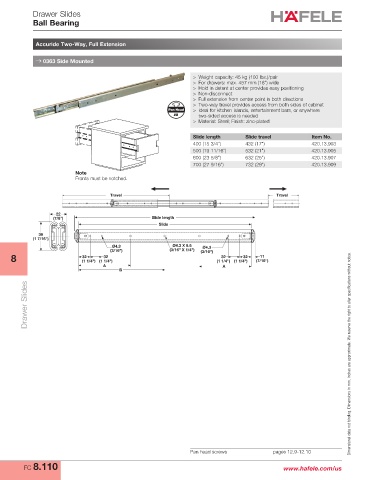

Drawer Slides
Ball Bearing

Accuride Two-Way, Full Extension

→ 0363 Side Mounted

> Weight capacity: 45 kg (100 lbs.)/pair
> For drawers: max. 457 mm (18") wide
> Hold in detent at center provides easy positioning
> Non-disconnect
> Full extension from center point in both directions
> Two-way travel provides access from both sides of cabinet
Pan Head > Ideal for kitchen islands, entertainment bars, or anywhere
#8 two-sided access is needed
> Material: Steel; Finish: zinc-plated

Slide length Slide travel Item No.
400 (15 3/4") 432 (17") 420.13.903
500 (19 11/16") 532 (21") 420.13.905
600 (23 5/8") 632 (25") 420.13.907
700 (27 9/16") 732 (29") 420.13.909
Note
Fronts must be notched.

Travel Travel

22
(7/8") Slide length
Slide
36
(1 7/16")
Ø4.3 Ø4.3 X 6.5 Ø4.3
(3/16") (3/16" X 1/4") (3/16")
8 32 32 (1 1/4") (1 1/4") (7/16")
11
32
32
(1 1/4") (1 1/4")
A A
B
Drawer Slides Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Pan head screws pages 12.9-12.10
