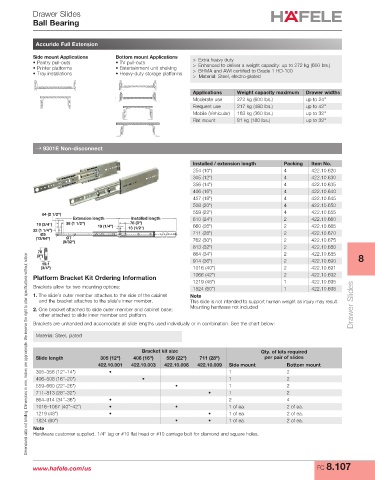

Page 785 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Ball Bearing

Accuride Full Extension

Side mount Applications Bottom mount Applications > Extra heavy duty
• Pantry pull-outs • TV pull-outs > Enhanced to deliver a weight capacity: up to 272 kg (600 lbs.)
• Printer platforms • Entertainment unit shelving > BHMA and AWI certified to Grade 1 HD-100
• Tray installations • Heavy-duty storage platforms > Material: Steel, electro-plated

Applications Weight capacity maximum Drawer widths
Moderate use 272 kg (600 lbs.) up to 24"
Frequent use 217 kg (480 lbs.) up to 42"
Mobile (Vehicular) 163 kg (360 lbs.) up to 32"
Flat mount 81 kg (180 lbs.) up to 32"

→ 9301E Non-disconnect

Installed / extension length Packing Item No.
254 (10") 4 422.10.620
305 (12") 4 422.10.630
356 (14") 4 422.10.635
406 (16") 4 422.10.640
457 (18") 4 422.10.645
508 (20") 4 422.10.650
559 (22") 4 422.10.655
64 (2 1/2")
Extension length Installed length 610 (24") 2 422.10.660
19 (3/4") 38 (1 1/2") 19 (1/4") 76 (3") 660 (26") 2 422.10.665
32 (1 1/4") 13 (1/2")
Ø5 711 (28") 2 422.10.670
(13/64") Ø7 762 (30") 2 422.10.675
(9/32")
813 (32") 2 422.10.680
76 864 (34") 2 422.10.685
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(3") 8
914 (36") 2 422.10.690
19.1
(3/4") 1016 (40") 2 422.10.691
Platform Bracket Kit Ordering Information 1066 (42") 2 422.10.692
1219 (48") 1 422.10.695
Brackets allow for two mounting options: 1524 (60") 1 422.10.698
1. The slide’s outer member attaches to the side of the cabinet Note
and the bracket attaches to the slide’s inner member. This slide is not intended to support human weight as injury may result.
Mounting hardware not included Drawer Slides
2. One bracket attached to slide outer member and cabinet base;
other attached to slide inner member and platform.
Brackets are unhanded and accomodate all slide lengths used individually or in combination. See the chart below:
Material: Steel, plated

Bracket kit size Qty. of kits required
Slide length 305 (12") 406 (16") 559 (22") 711 (28") per pair of slides
422.10.001 422.10.003 422.10.006 422.10.009 Side mount Bottom mount
305–356 (12"–14") • 1 2
406–508 (16"–20") • 1 2
559–660 (22"–26") • 1 2
711–813 (28"–32") • 1 2
864–914 (34"–36") • 2 4
1016–1067 (40"–42") • • 1 of ea. 2 of ea.
1219 (48") • • 1 of ea. 2 of ea.
1824 (60") • • 1 of ea. 2 of ea.
Note
Hardware customer supplied. 1/4" lag or #10 flat head or #10 carriage bolt for diamond and square holes.

www.hafele.com/us FC 8.107
