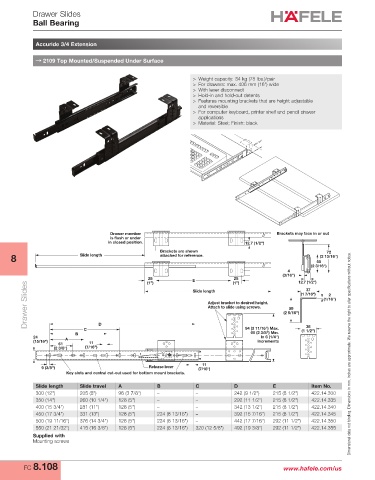

Page 786 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Ball Bearing

Accuride 3/4 Extension

→ 2109 Top Mounted/Suspended Under Surface

> Weight capacity: 34 kg (75 lbs.)/pair
> For drawers: max. 406 mm (16") wide
> With lever disconnect
> Hold-in and hold-out detents
> Features mounting brackets that are height adjustable
and reversible
> For computer keyboard, printer shelf and pencil drawer
applications
> Material: Steel; Finish: black

Drawer member Brackets may face in or out
is flush or under
in closed position. 12.7 (1/2")
Brackets are shown 72
8 Slide length attached for reference. 55 (2 13/16")
(2 3/16")
4
(3/16")
25
25 E Slide length (1") 12.7 (1/2")
(1")
Drawer Slides Adjust bracket to desired height. (2 5/16") (1 7/16") (1/16")
37
2
Attach to slide using screws.
59
38
C D 94 (3 11/16") Max. (1 1/2")
B 60 (2 3/8") Min.
24 A In 6 (1/4")
(15/16") 11 Increments
61
(2 3/8") (7/16") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
11
9 (3/8") Release lever (7/16")
Key slots and central cut-out used for bottom mount brackets.
Slide length Slide travel A B C D E Item No.
300 (12") 205 (8") 96 (3 7/8") – – 242 (9 1/2") 215 (8 1/2") 422.14.300
350 (14") 260 (10 1/4") 128 (5") – – 292 (11 1/2") 215 (8 1/2") 422.14.335
400 (15 3/4") 281 (11") 128 (5") – – 342 (13 1/2") 215 (8 1/2") 422.14.340
450 (17 3/4") 331 (13") 128 (5") 224 (8 13/16") – 392 (15 7/16") 215 (8 1/2") 422.14.345
500 (19 11/16") 376 (14 3/4") 128 (5") 224 (8 13/16") – 442 (17 7/16") 292 (11 1/2") 422.14.350
550 (21 21/32") 415 (16 3/8") 128 (5") 224 (8 13/16") 320 (12 5/8") 492 (19 3/8") 292 (11 1/2") 422.14.355
Supplied with
Mounting screws

FC 8.108 www.hafele.com/us
