Drawer Slides
Ball Bearing

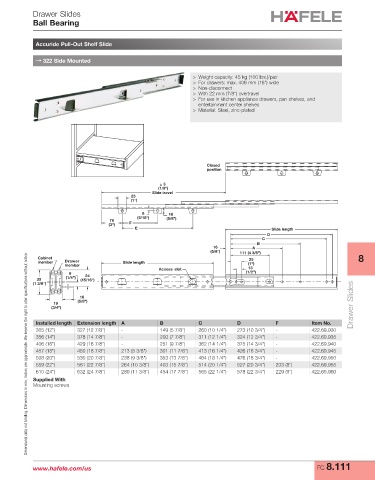

Accuride Pull-Out Shelf Slide

→ 322 Side Mounted

> Weight capacity: 45 kg (100 lbs.)/pair
> For drawers: max. 406 mm (16") wide
> Non-disconnect
> With 22 mm (7/8") overtravel
> For use in kitchen appliance drawers, pan shelves, and
entertainment center shelves
> Material: Steel, zinc-plated

Closed
position

± 3
(1/8")
Slide travel
25
(1")
8 16
(5/16") (5/8")
76
(3") F
E Slide length
D
C
B
16 A
(5/8") 111 (4 3/8")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Cabinet 25 8
member Drawer Slide length (1")
member
Access slot 13
6 24 (1/2")
35 (1/4") (15/16")
(1 3/8")
16
(5/8")
19 Drawer Slides
(3/4")
Installed length Extension length A B C D F Item No.
305 (12") 327 (12 7/8") - 149 (5 7/8") 260 (10 1/4") 273 (10 3/4") - 422.69.930
356 (14") 378 (14 7/8") - 200 (7 7/8") 311 (12 1/4") 324 (12 3/4") - 422.69.935
406 (16") 429 (16 7/8") - 251 (9 7/8") 362 (14 1/4") 375 (14 3/4") - 422.69.940
457 (18") 480 (18 7/8") 213 (8 3/8") 301 (11 7/8") 413 (16 1/4") 426 (16 3/4") - 422.69.945
508 (20") 530 (20 7/8") 238 (9 3/8") 353 (13 7/8") 464 (18 1/4") 476 (18 3/4") - 422.69.950
559 (22") 581 (22 7/8") 264 (10 3/8") 403 (15 7/8") 514 (20 1/4") 527 (20 3/4") 203 (8") 422.69.955
610 (24") 632 (24 7/8") 289 (11 3/8") 454 (17 7/8") 565 (22 1/4") 578 (22 3/4") 229 (9") 422.69.960
Supplied With
Mounting screws
