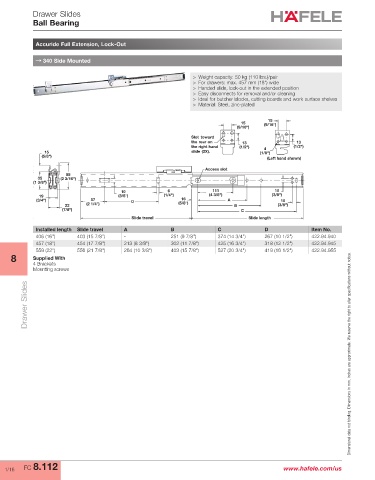

P. 792
Drawer Slides
Ball Bearing
Accuride Full Extension, Lock-Out
→ 340 Side Mounted
> Weight capacity: 50 kg (110 lbs.)/pair
> For drawers: max. 457 mm (18") wide
> Handed slide, lock-out in the extended position
> Easy disconnects for removal and/or cleaning
> Ideal for butcher blocks, cutting boards and work surface shelves
> Material: Steel, zinc-plated
15
15 (9/16")
(9/16")
Slot toward
the rear on 13 13
the right hand (1/2") 4 (1/2")
15 slide (2X). (1/8")
(5/8") (Left hand shown)
Access slot
55
35 (2 3/16")
(1 3/8")
10 6 111 10
19 (3/8") (1/4") (4 3/8") (3/8")
16
(3/4") 57 D (5/8") A 10
22 (2 1/4") B (3/8")
(7/8") C
Slide travel Slide length
Installed length Slide travel A B C D Item No.
406 (16") 403 (15 7/8") - 251 (9 7/8") 374 (14 3/4") 267 (10 1/2") 422.94.940
457 (18") 454 (17 7/8") 213 (8 3/8") 302 (11 7/8") 425 (16 3/4") 318 (12 1/2") 422.94.945
559 (22") 556 (21 7/8") 264 (10 3/8") 403 (15 7/8") 527 (20 3/4") 419 (16 1/2") 422.94.955
8 Supplied With
4 Brackets
Mounting screws
Drawer Slides Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
