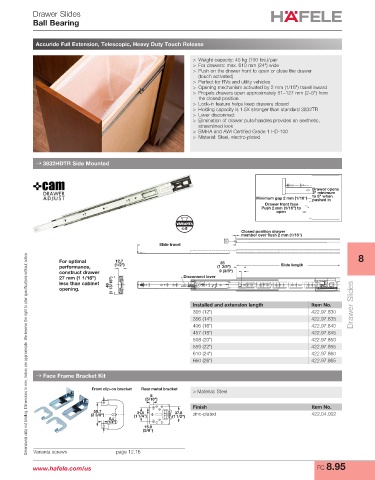

Drawer Slides
Ball Bearing

Accuride Full Extension, Telescopic, Heavy Duty Touch Release

> Weight capacity: 45 kg (100 lbs.)/pair
> For drawers: max. 610 mm (24") wide
> Push on the drawer front to open or close the drawer
(touch activated)
> Perfect for RVs and utility vehicles
> Opening mechanism activated by 2 mm (1/16") travel inward
> Propels drawers open approximately 51–127 mm (2–5") from
the closed position
> Lock-in feature helps keep drawers closed
> Holding capacity is 1.5X stronger than standard 3832TR
> Lever disconnect
> Elimination of drawer pulls/handles provides an aesthetic,
streamlined look
> BMHA and AWI Certified Grade 1 HD-100
> Material: Steel, electro-plated

→ 3832HDTR Side Mounted

Drawer opens
2" minimum
Minimum gap 2 mm (1/16") to 5" when
pushed in
Drawer front face
Push 2 mm (1/16") to
open
VARIANTA
5
Closed position drawer
member over flush 2 mm (1/16")
Slide travel
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8
For optimal 12.7 35
performance, (1/2") (1 3/8") Slide length
construct drawer 9 (3/8")
27 mm (1 1/16") Disconnect lever
less than cabinet 46 (1 13/16")
opening.

Installed and extension length Item No. Drawer Slides
305 (12") 422.97.830
356 (14") 422.97.835
406 (16") 422.97.840
457 (18") 422.97.845
508 (20") 422.97.850
559 (22") 422.97.855
610 (24") 422.97.860
660 (26") 422.97.865

→ Face Frame Bracket Kit

Front clip-on bracket Rear metal bracket > Material: Steel
8
(5/16")
Finish Item No.
59.7
31.8
37.8
(2 3/8") (1 1/4") (1 1/2") zinc-plated 422.04.002
6.4
(1/4")
15.9
(5/8")
Varianta screws page 12.16

www.hafele.com/us FC 8.95
