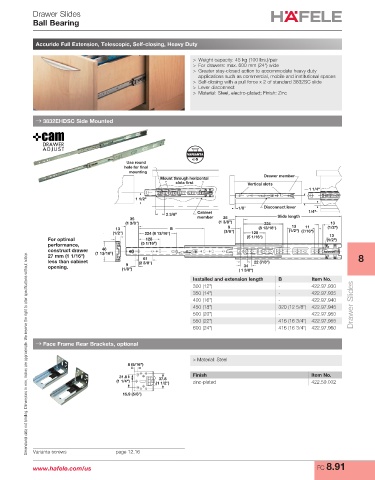

Drawer Slides
Ball Bearing

Accuride Full Extension, Telescopic, Self-closing, Heavy Duty

> Weight capacity: 45 kg (100 lbs.)/pair
> For drawers: max. 600 mm (24") wide
> Greater stay-closed action to accommodate heavy duty
applications such as commercial, mobile and institutional spaces
> Self-closing with a pull force x 2 of standard 3832SC slide
> Lever disconnect
> Material: Steel, electro-plated; Finish: Zinc

→ 3832EHDSC Side Mounted

VARIANTA
5
Use round
hole for final
mounting
Mount through horizontal Drawer member
slots first Vertical slots
1 1/4"
1 1/2"
1/8" Disconnect lever
2 3/8" Cabinet Slide length 1/4"
35 member 35
(1 3/8") (1 3/8") 224 13
13
13 B 9 (8 13/16") (1/2") 11 (1/2")
(1/2") 224 (8 13/16") (3/8") 128 (7/16") 13
For optimal 128 (5 1/16") (1/2")
performance, (5 1/16")
construct drawer 46
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
27 mm (1 1/16") (1 13/16") PAT.5255983 8
61
less than cabinet (2 3/8") 22 (7/8")
9
opening. (1/8") ( 1 3/8")
34
Installed and extension length B Item No.
300 (12") - 422.97.930
350 (14") - 422.97.935
400 (16") - 422.97.940
450 (18") 320 (12 5/8") 422.97.945 Drawer Slides
500 (20") - 422.97.950
550 (22") 416 (16 3/4") 422.97.955
600 (24") 416 (16 3/4") 422.97.960

→ Face Frame Rear Brackets, optional
Front
clip-on bracket
Ø4.6 (3/16") > Material: Steel
8 (5/16")
48.5 31.8 Finish Item No.
37.8
(1 15/16") (1 1/4") (1 1/2") zinc-plated 422.59.002
6.4
(1/4") 15.9 (5/8")
4.6 x 7.1
(3/16" x 1/4")

Varianta screws page 12.16

www.hafele.com/us FC 8.91
