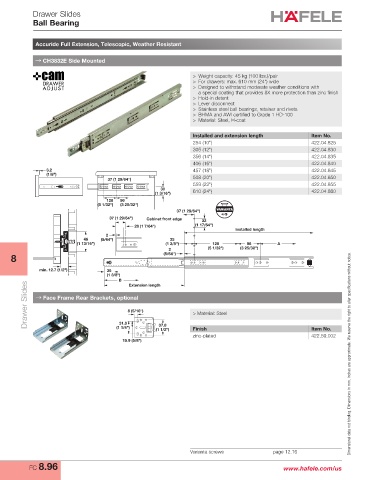

Drawer Slides
Ball Bearing

Accuride Full Extension, Telescopic, Weather Resistant

→ CH3832E Side Mounted

> Weight capacity: 45 kg (100 lbs.)/pair
> For drawers: max. 610 mm (24") wide
> Designed to withstand moderate weather conditions with
a special coating that provides 8X more protection than zinc finish
> Hold-in detent
> Lever disconnect
> Stainless steel ball bearings, retainer and rivets
> BHMA and AWI certified to Grade 1 HD-100
> Material: Steel, H-coat

Installed and extension length Item No.
254 (10") 422.04.825
305 (12") 422.04.830
356 (14") 422.04.835
406 (16") 422.04.840
3.2 457 (18") 422.04.845
(1/8") 508 (20") 422.04.850
37 (1 29/64")
559 (22") 422.04.855
30 610 (24") 422.04.860
(1 3/16")
128 96
(5 1/32") (3 25/32")
37 (1 29/64") VARIANTA
5
37 (1 29/64") Cabinet front edge 32
28 (1 7/64") (1 17/64")
Installed length
2
46 (5/64") 35
(1 13/16") (1 3/8") 128 96 A
2 (5 1/32") (3 25/32")
8 (5/64")
min. 12.7 (1/2") 35
(1 3/8")
B Extension length
Drawer Slides → Face Frame Rear Brackets, optional > Material: Steel
Front
clip-on bracket
Ø4.6 (3/16")
8 (5/16")
31.8
48.5
37.8
(1 1/4")
(1 15/16")
(1 1/2") Finish Item No.
6.4 zinc-plated 422.59.002
(1/4") 15.9 (5/8")
4.6 x 7.1
(3/16" x 1/4") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Varianta screws page 12.16
