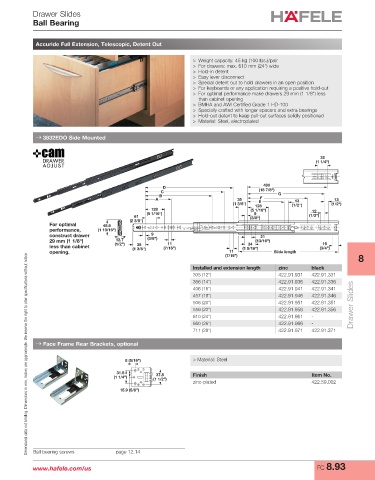

Drawer Slides
Ball Bearing

Accuride Full Extension, Telescopic, Detent Out

> Weight capacity: 45 kg (100 lbs.)/pair
> For drawers: max. 610 mm (24") wide
> Hold-in detent
> Easy lever disconnect
> Special detent out to hold drawers in an open position
> For keyboards or any application requiring a positive hold-out
> For optimal performance make drawers 29 mm (1 1/8") less
than cabinet opening
> BMHA and AWI Certified Grade 1 HD-100
> Specially crafted with longer spacers and extra bearings
> Hold-out detent to keep pull-out surfaces solidly positioned
> Material: Steel, electroplated

→ 3832EDO Side Mounted

32
(1 1/4")

480
D
C (18 7/8") G
B
A 35 E F 13 13
(1 3/8") 128 (1/2") (1/2")
128 (5 1/16") 12
(5 1/16") 9
61 (3/8") (1/2")
(2 3/8")
For optimal 45.6
performance, (1 13/16")
construct drawer 9 21
29 mm (1 1/8") 12.7 (3/8") (13/16")
34
11
19
35
less than cabinet (1/2") (1 3/8") (7/16") (1 5/16") (3/4")
opening. 11 Slide length
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8
(7/16")
Installed and extension length zinc black
305 (12") 422.91.931 422.91.331
356 (14") 422.91.936 422.91.336
406 (16") 422.91.941 422.91.341
457 (18") 422.91.946 422.91.346
508 (20") 422.91.951 422.91.351 Drawer Slides
559 (22") 422.91.956 422.91.356
610 (24") 422.91.961 -
660 (26") 422.91.966 -
711 (28") 422.91.971 422.91.371
Front
→ Face Frame Rear Brackets, optional
clip-on bracket
Ø4.6 (3/16")
8 (5/16") > Material: Steel
48.5 31.8 37.8
(1 15/16") (1 1/4") (1 1/2") Finish Item No.
6.4 zinc-plated 422.59.002
(1/4") 15.9 (5/8")
4.6 x 7.1
(3/16" x 1/4")

Ball bearing screws page 12.14

www.hafele.com/us FC 8.93
