Drawer Slides
Double-Wall Drawer System

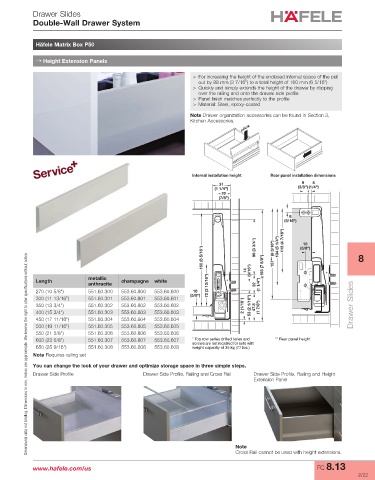

Häfele Matrix Box P50

→ Height Extension Panels

> For increasing the height of the enclosed internal space of the pull
out by 88 mm (3 7/16") to a total height of 160 mm (6 5/16")
> Quickly and simply extends the height of the drawer by clipping
over the railing and onto the drawer side profile
> Panel finish matches perfectly to the profile
> Material: Steel, epoxy-coated
Note Drawer organization accessories can be found in Section 3,
Kitchen Accessories.
click

Internal installation height Rear panel installation dimensions
31 9 6
(1 1/4") (3/8") (1/4")
22
(7/8")

8
(5/16")

10
160 (6 5/16") 96 (3 3/4") 157** (6 3/16") 134 (5 1/4") 112 (4 7/16") (3/8") 8
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

14 (9/16") (1 1/4") ≥193 (7 5/8")
Length metallic champagne white
anthracite 72 (2 13/16") 32
270 (10 5/8") 551.60.300 553.60.800 553.60.600 16
300 (11 13/16") 551.60.301 553.60.801 553.60.601 (5/8")
350 (13 3/4") 551.60.302 553.60.802 553.60.602 2 (1/16") 53 (2 1/16") 47.5 (1 7/8") Drawer Slides
400 (15 3/4") 551.60.303 553.60.803 553.60.603
450 (17 11/16") 551.60.304 553.60.804 553.60.604
500 (19 11/16") 551.60.305 553.60.805 553.60.605
550 (21 5/8") 551.60.306 553.60.806 553.60.606
600 (23 5/8") 551.60.307 553.60.807 553.60.607 * Top row series drilled holes and ** Rear panel height
screws are not required for sets with
650 (25 9/16") 551.60.308 553.60.808 553.60.608 weight capacity of 35 kg (77 lbs.)
Note Requires railing set
You can change the look of your drawer and optimize storage space in three simple steps.
Drawer Side Profile Drawer Side Profile, Railing and Cross Rail Drawer Side Profile, Railing and Height
Extension Panel

Note
Cross Rail cannot be used with height extensions.

www.hafele.com/us FC 8.13
2/22
