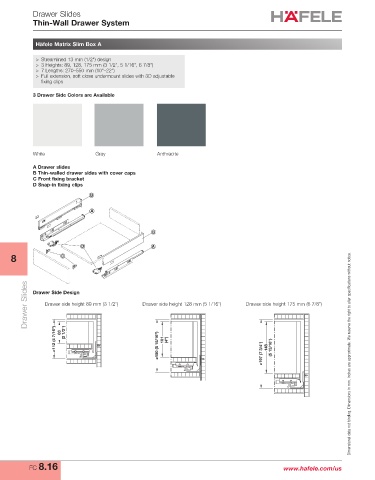

P. 680
Drawer Slides
Thin-Wall Drawer System
Häfele Matrix Slim Box A
> Streamlined 13 mm (1/2") design
> 3 Heights: 89, 128, 175 mm (3 1/2", 5 1/16", 6 7/8")
> 7 Lengths: 270–550 mm (10"–22")
> Full extension, soft close undermount slides with 3D adjustable
fixing clips
3 Drawer Side Colors are Available
White Gray Anthracite
A Drawer slides
B Thin-walled drawer sides with cover caps
C Front fixing bracket
D Snap-in fixing clips
8
Drawer Slides Drawer Side Design Drawer side height 128 mm (5 1/16") Drawer side height 175 mm (6 7/8")
Drawer side height 89 mm (3 1/2")
≥112 (4 7/16") 63 (2 1/2") ≥150 (5 15/16") 101 (4") ≥197 (7 3/4") 148 (5 13/16") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
FC 8.16 www.hafele.com/us
