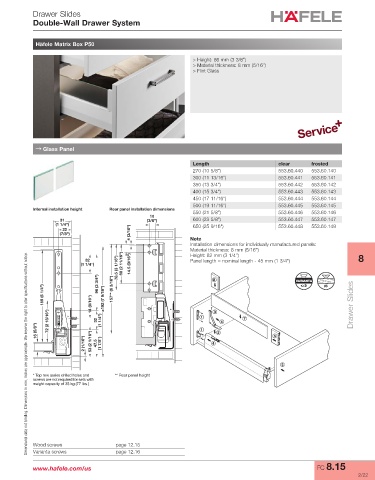

Page 679 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Double-Wall Drawer System

Häfele Matrix Box P50

> Height: 86 mm (3 3/8")
> Material thickness: 8 mm (5/16")
> Flint Glass

→ Glass Panel

Length clear frosted
270 (10 5/8") 553.60.440 553.60.140
300 (11 13/16") 553.60.441 553.60.141
350 (13 3/4") 553.60.442 553.60.142
400 (15 3/4") 553.60.443 553.60.143
450 (17 11/16") 553.60.444 553.60.144
500 (19 11/16") 553.60.445 553.60.145
Internal installation height Rear panel installation dimensions
550 (21 5/8") 553.60.446 553.60.146
10
31 (3/8") 600 (23 5/8") 553.60.447 553.60.147
(1 1/4") 650 (25 9/16") 553.60.448 553.60.148
22
(7/8") 4 (3/16") Note
Installation dimensions for individually manufactured panels:
Material thickness: 8 mm (5/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
32 Height: 82 mm (3 1/4") 8
Panel length = nominal length - 45 mm (1 3/4")
(1 1/4") 78.5 (3 1/16") 68 (2 11/16") 14.5 (9/16")
96 (3 3/4") 157** (6 3/16") 8 VARIANTA #8
3
159 (6 1/4") 14 (9/16") ≥192 (7 9/16") Drawer Slides

72 (2 13/16") 32 (1 1/4")

16 (5/8")
2 (1/16") 53 (2 1/16") 47.5 (1 7/8")

* Top row series drilled holes and ** Rear panel height
screws are not required for sets with
weight capacity of 35 kg (77 lbs.)

Wood screws page 12.15
Varianta screws page 12.16
