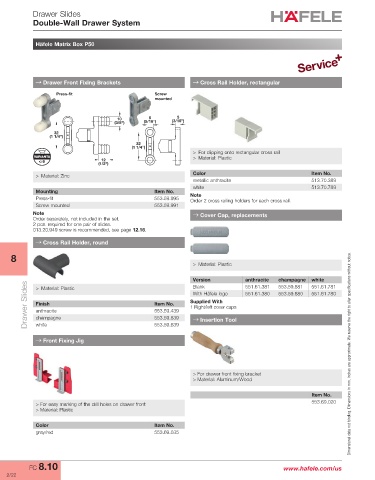

Drawer Slides
Double-Wall Drawer System

Häfele Matrix Box P50

→ Drawer Front Fixing Brackets → Cross Rail Holder, rectangular

Press-fit Screw
mounted

10 8 5
(3/8") (5/16") (3/16")
32
(1 1/4")
32
(1 1/4")
> For clipping onto rectangular cross rail
VARIANTA > Material: Plastic
5 12
(1/2")
> Material: Zinc Color Item No.
metallic anthracite 513.70.389
white 513.70.789
Mounting Item No. Note
Press-fit 553.59.995 Order 2 cross railing holders for each cross rail.
Screw mounted 553.59.991
Note → Cover Cap, replacements
Order separately, not included in the set.
2 pcs. required for one pair of slides.
013.20.949 screw is recommended, see page 12.16.

→ Cross Rail Holder, round

8
> Material: Plastic

Version anthracite champagne white
Drawer Slides Finish Item No. Supplied With 551.61.380 553.59.880 551.61.780
553.59.881
Blank
551.61.381
551.61.781
> Material: Plastic
With Häfele logo
1 Right/left cover caps
553.59.439
anthracite
champagne
553.59.839
→ Insertion Tool
white
→ Front Fixing Jig 553.59.639 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

> For drawer front fixing bracket
> Material: Aluminum/Wood

Item No.
> For easy marking of the drill holes on drawer front 553.69.020
> Material: Plastic

Color Item No.
gray/red 553.69.035

FC 8.10 www.hafele.com/us
2/22
