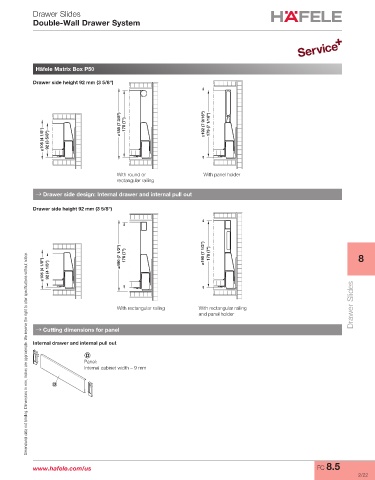

Drawer Slides
Double-Wall Drawer System

Häfele Matrix Box P50

Drawer side height 92 mm (3 5/8")

≥188 (7 3/8") 178 (7") ≥192 (7 9/16") 179 (7 1/16")

≥105 (4 1/8") 92 (3 5/8")

With round or With panel holder
rectangular railing

→ Drawer side design: Internal drawer and internal pull out

Drawer side height 92 mm (3 5/8") Drawer side height 115 mm (4 1/2")

≥190 (7 1/2") 178 (7") ≥190 (7 1/2") 178 (7") ≥190 (7 1/2") 178 (7") 8
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
≥105 (4 1/8") 92 (4 1/8")

Drawer Slides

With rectangular railing With rectangular railing With rectangular railing
and panel holder

→ Cutting dimensions for panel

Internal drawer and internal pull out

Panel:
Internal cabinet width – 9 mm
