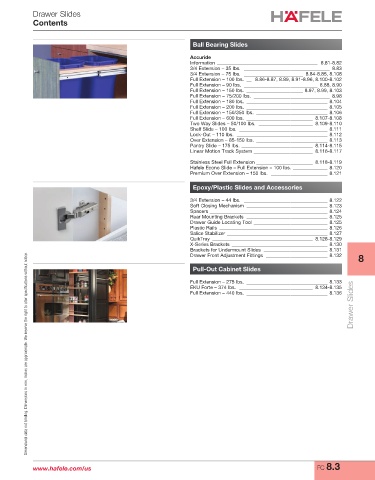

Drawer Slides
Contents

Ball Bearing Slides

Accuride
Information _________________________________________ 8.81-8.82
3/4 Extension – 35 lbs. ___________________________________ 8.83
3/4 Extension – 75 lbs. ________________________ 8.84-8.85, 8.108
Full Extension – 100 lbs. __ 8.86-8.87, 8.89, 8.91-8.96, 8.100-8.102
Full Extension – 90 lbs. ______________________________ 8.88, 8.90
Full Extension – 150 lbs. _______________________ 8.97, 8.99, 8.103
Full Extension – 75/200 lbs. _______________________________ 8.98
Full Extension – 180 lbs. _________________________________ 8.104
Full Extension – 200 lbs. _________________________________ 8.105
Full Extension – 150/350 lbs. _____________________________ 8.106
Full Extension – 600 lbs. ___________________________ 8.107-8.108
Two Way Slides – 50/100 lbs. ______________________ 8.109-8.110
Shelf Slide – 100 lbs. ____________________________________ 8.111
Lock-Out – 110 lbs. _____________________________________ 8.112
Over Extension – 85-150 lbs. _____________________________ 8.113
Pantry Slide – 175 lbs. _____________________________ 8.114-8.115
Linear Motion Track System ________________________ 8.116-8.117
Stainless Steel Full Extension _______________________ 8.118-8.119
Hafele Econo Slide – Full Extension – 100 lbs. ______________ 8.120
Premium Over Extension – 150 lbs. _______________________ 8.121
Epoxy/Plastic Slides and Accessories

3/4 Extension – 44 lbs. __________________________________ 8.122
Soft Closing Mechanism _________________________________ 8.123
Spacers ________________________________________________ 8.124
Rear Mounting Brackets _________________________________ 8.125
Drawer Guide Locating Tool ______________________________ 8.125
Plastic Rails ____________________________________________ 8.126
Salice Stabilizer _________________________________________ 8.127
QuikTray _________________________________________ 8.128-8.129
X-Series Brackets _______________________________________ 8.130
Brackets for Undermount Slides __________________________ 8.131
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Drawer Front Adjustment Fittings _________________________ 8.132
8
Pull-Out Cabinet Slides

Full Extension – 275 lbs. _________________________________ 8.133
Drawer Slides
EKU Forte – 374 lbs. ______________________________ 8.134-8.135
Full Extension – 440 lbs. _________________________________ 8.136

www.hafele.com/us FC 8.3
