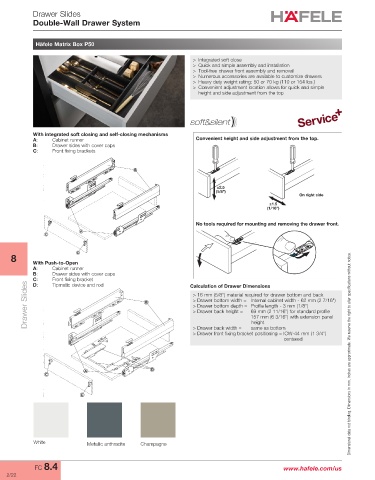

Drawer Slides
Double-Wall Drawer System

Häfele Matrix Box P50

> Integrated soft close
> Quick and simple assembly and installation
> Tool-free drawer front assembly and removal
> Numerous accessories are available to customize drawers
> Heavy duty weight rating: 50 or 70 kg (110 or 154 lbs.)
> Convenient adjustment location allows for quick and simple
height and side adjustment from the top

With integrated soft closing and self-closing mechanisms
A: Cabinet runner Convenient height and side adjustment from the top.
B: Drawer sides with cover caps
C: Front fixing brackets

±2.5
(1/8")
On right side
±1.5
(1/16")

No tools required for mounting and removing the drawer front.

8
With Push-to-Open
A: Cabinet runner
B: Drawer sides with cover caps
C: Front fixing bracket Calculation of Drawer Dimensions
Drawer Slides > 16 mm (5/8") material required for drawer bottom and back
D:
Tipmatic device and rod
> Drawer bottom width = Internal cabinet width - 62 mm (2 7/16")
> Drawer bottom depth = Profile length - 3 mm (1/8")
> Drawer back height =
69 mm (2 11/16") for standard profile
157 mm (6 3/16") with extension panel

height
> Drawer back width =
same as bottom
> Drawer front fixing bracket positioning = ICW-44 mm (1 3/4")
centered Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

White Metallic anthracite Champagne
