Sliding and Roller Shutter Systems
Roller Shutters

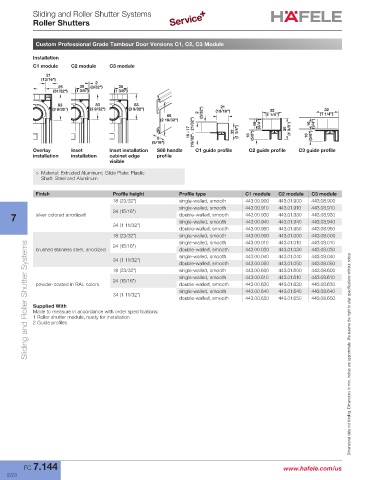

Custom Professional Grade Tambour Door Versions C1, C2, C3 Module

Installation
C1 module C2 module C3 module
21
(13/16")
2
25 35 (3/32") 35
(31/32") (1 3/8") (1 3/8")
83 83 83 21
(3 9/32") (3 9/32") (3 9/32") (13/16") 32 32
2 (3/32") (1 1/4")
66 (1 1/4")
(2 19/32") 19 (3/4") 19 (3/4")
15 17 (19/32" 21/32") 32 (1 1/4") 35 (1 3/8")
8 16 (5/8") 16 (5/8")
(5/16")
Overlay Inset Inset installation S66 handle C1 guide profile C2 guide profile C3 guide profile
installation installation cabinet edge profile
visible

> Material: Extruded Aluminum; Glide Plate: Plastic
Shaft: Steel and Aluminum

Finish Profile height Profile type C1 module C2 module C3 module
18 (23/32") single-walled, smooth 443.00.900 443.01.900 443.08.900
single-walled, smooth 443.00.910 443.01.910 443.08.910
24 (15/16")
7 silver colored anodized double-walled, smooth 443.00.930 443.01.930 443.08.930
34 (1 11/32") single-walled, smooth 443.00.940 443.01.940 443.08.940
double-walled, smooth 443.00.950 443.01.950 443.08.950
18 (23/32") single-walled, smooth 443.00.000 443.01.000 443.08.000
single-walled, smooth 443.00.010 443.01.010 443.08.010
Sliding and Roller Shutter Systems
24 (15/16")
brushed stainless steel, anodized double-walled, smooth 443.00.030 443.01.030 443.08.030
single-walled, smooth 443.00.040 443.01.040 443.08.040
34 (1 11/32")
double-walled, smooth 443.00.050 443.01.050 443.08.050
18 (23/32") single-walled, smooth 443.00.600 443.01.600 443.08.600
single-walled, smooth 443.00.610 443.01.610 443.08.610
24 (15/16")
powder-coated in RAL colors double-walled, smooth 443.00.630 443.01.630 443.08.630
single-walled, smooth 443.00.640 443.01.640 443.08.640
34 (1 11/32")
double-walled, smooth 443.00.650 443.01.650 443.08.650
Supplied With
Made to measure in accordance with order specifications:
1 Roller shutter module, ready for installation
2 Guide profiles Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
