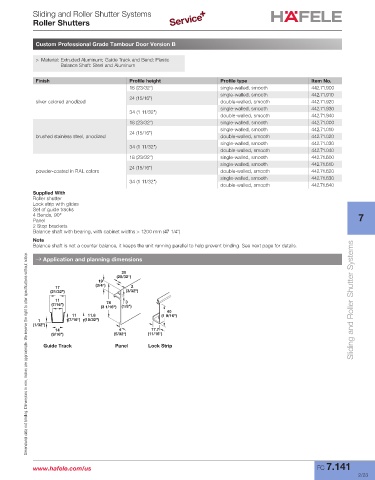

Sliding and Roller Shutter Systems
Roller Shutters

Custom Professional Grade Tambour Door Version B

> Material: Extruded Aluminum; Guide Track and Bend: Plastic
Balance Shaft: Steel and Aluminum

Finish Profile height Profile type Item No.
18 (23/32") single-walled, smooth 442.71.900
single-walled, smooth 442.71.910
24 (15/16")
silver colored anodized double-walled, smooth 442.71.920
single-walled, smooth 442.71.930
34 (1 11/32")
double-walled, smooth 442.71.940
18 (23/32") single-walled, smooth 442.71.000
single-walled, smooth 442.71.010
24 (15/16")
brushed stainless steel, anodized double-walled, smooth 442.71.020
single-walled, smooth 442.71.030
34 (1 11/32")
double-walled, smooth 442.71.040
18 (23/32") single-walled, smooth 442.71.600
single-walled, smooth 442.71.610
24 (15/16")
powder-coated in RAL colors double-walled, smooth 442.71.620
single-walled, smooth 442.71.630
34 (1 11/32")
double-walled, smooth 442.71.640
Supplied With
Roller shutter
Lock strip with glides
Set of guide tracks
4 Bends, 90° 7
Panel
2 Stop brackets
Balance shaft with bearing, with cabinet widths > 1200 mm (47 1/4")
Note
Balance shaft is not a counter balance, it keeps the unit running parallel to help prevent binding. See next page for details.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Application and planning dimensions

20
(25/32")
19
17 (3/4") 2
(21/32") (3/32")
11 3 Sliding and Roller Shutter Systems
(7/16") 78
(3 1/16") (1/8")
40
11 11.8 (1 9/16")
1 (7/16") (15/32")
(1/32")
14 4 17.7
(9/16") (5/32") (11/16")
Guide Track Panel Lock Strip

www.hafele.com/us FC 7.141
2/23
