Sliding and Roller Shutter Systems
Roller Shutters

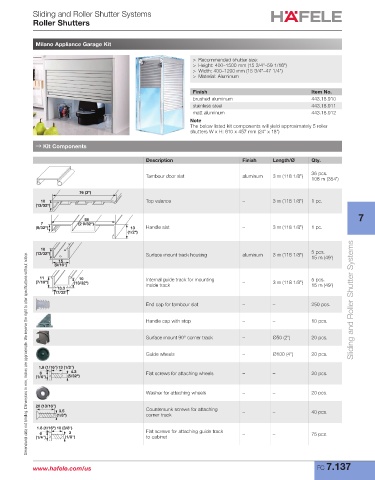

Milano Appliance Garage Kit

> Recommended shutter size:
> Height: 400–1500 mm (15 3/4"–59 1/16")
> Width: 400–1200 mm (15 3/4"–47 1/4")
> Material: Aluminum

Finish Item No.
brushed aluminum 443.18.910
stainless steel 443.18.911
matt aluminum 443.18.912
Note
The below listed kit components will yield approximately 5 roller
shutters W x H: 610 x 457 mm (24" x 18")

→ Kit Components

Description Finish Length/Ø Qty.

Tambour door slat aluminum 3 m (118 1/8") 36 pcs.
108 m (354')

76 (3")
10 Top valance – 3 m (118 1/8") 1 pc.
(13/32")
7
58
7 (2 9/32")
(9/32") 13 Handle slat – 3 m (118 1/8") 1 pc.
(1/2")

10
(13/32") Surface mount track housing aluminum 3 m (118 1/8") 5 pcs.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
15 m (49')
15
(9/16")
11 10 Internal guide track for mounting 5 pcs.
(7/16") (13/32") inside track – 3 m (118 1/8") 15 m (49')
13.3
(17/32")

End cap for tambour slat – – 250 pcs. Sliding and Roller Shutter Systems

Handle cap with stop – – 10 pcs.

Surface mount 90° corner track – Ø50 (2") 20 pcs.

Guide wheels – Ø100 (4") 20 pcs.
1.8 (1/16") 13 (1/2")
6 4.3 Flat screws for attaching wheels – – 20 pcs.
(1/4") (5/32")

Washer for attaching wheels – – 20 pcs.
20 (13/16")
3.5 Countersunk screws for attaching – – 40 pcs.
(1/8") corner track

1.8 (1/16") 10 (3/8")
6 3 Flat screws for attaching guide track – – 75 pcs.
(1/4") (1/8") to cabinet
