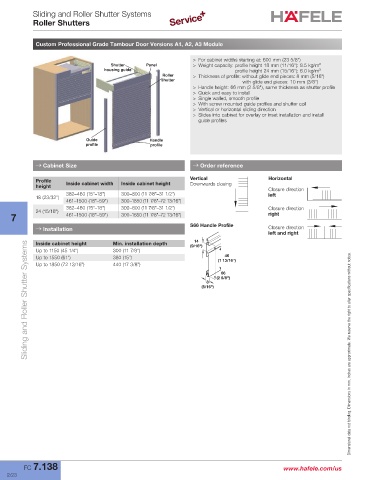

Sliding and Roller Shutter Systems
Roller Shutters

Custom Professional Grade Tambour Door Versions A1, A2, A3 Module
Shutter Panel
housing guide
Roller > For cabinet widths starting at: 600 mm (23 5/8")
Shutter Panel shutter > Weight capacity: profile height 18 mm (11/16"): 8.5 kg/m²
housing guide profile height 24 mm (15/16"): 6.0 kg/m²
Roller > Thickness of profile: without glide end pieces: 8 mm (5/16")
shutter with glide end pieces: 10 mm (3/8")
Guide > Handle height: 66 mm (2 5/8"), same thickness as shutter profile
plate > Quick and easy to install
> Single walled, smooth profile
Guide > With screw mounted guide profiles and shutter coil
plate
> Vertical or horizontal sliding direction
> Slides into cabinet for overlay or inset installation and install
guide profiles
Guide Handle
profile profile
Guide Handle
profile profile

→ Cabinet Size → Order reference

Profile Inside cabinet width Inside cabinet height Vertical Horizontal
height Downwards closing Closure direction
382–460 (15"–18") 300–800 (11 7/8"–31 1/2") left
18 (23/32")
461–1500 (18"–59") 300–1850 (11 7/8"–72 13/16")
382–460 (15"–18") 300–800 (11 7/8"–31 1/2") Closure direction
24 (15/16") right
7 461–1500 (18"–59") 300–1850 (11 7/8"–72 13/16")
S66 Handle Profile
→ Installation Closure direction
left and right
14
Sliding and Roller Shutter Systems
Inside cabinet height Min. installation depth (9/16")
Up to 1150 (45 1/4") 300 (11 7/8")
46
Up to 1550 (61") 380 (15") (1 13/16")
Up to 1850 (72 13/16") 440 (17 3/8")
66
(2 5/8")
8
(5/16") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
