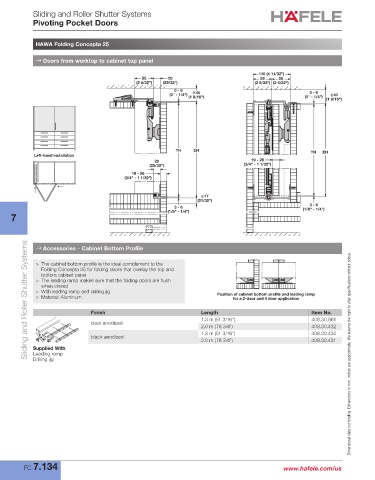

Sliding and Roller Shutter Systems
Pivoting Pocket Doors

HAWA Folding Concepta 25

→ Doors from worktop to cabinet top panel
110 (4 11/32")
55 20 55 55
(2 5/32") (25/32") (2 5/32") (2 5/32")
0 - 6 40 0 - 6
(0" - 1/4") (1 9/16") (0" - 1/4") 40
(1 9/16")

TH EH TH EH
Left-hand installation
20 19 - 26
(25/32") (3/4" - 1 1/32")
19 - 26
(3/4" - 1 1/32")

17
(21/32")
3 - 6
3 - 6 (1/8" - 1/4")
(1/8" - 1/4")
7

Sliding and Roller Shutter Systems
→ Accessories - Cabinet Bottom Profile

> The cabinet bottom profile is the ideal complement to the
Folding Concepta 25 for folding doors that overlay the top and
bottom cabinet panel
> The leading ramp makes sure that the folding doors are flush
when closed
> With leading ramp and drilling jig
> Material: Aluminum Position of cabinet bottom profile and leading ramp
for a 2-door and 4 door application
Finish Length Item No.
1.3 m (51 3/16") 408.30.961
clear anodized
2.0 m (78 3/4") 408.30.432
1.3 m (51 3/16") 408.30.430
black anodized
2.0 m (78 3/4") 408.30.431
Supplied With
Leading ramp Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Drilling jig

FC 7.134 www.hafele.com/us
