Sliding and Roller Shutter Systems
Pivoting Pocket Doors

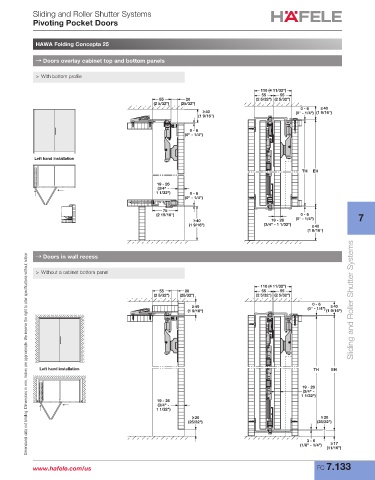

HAWA Folding Concepta 25

→ Doors overlay cabinet top and bottom panels

> With bottom profile

110 (4 11/32")
55 55
55 20 (2 5/32") (2 5/32")
(2 5/32") (25/32")
0 - 6 40
40 (0" - 1/4") (1 9/16")
(1 9/16")
0 - 6
(0" - 1/4")

Left hand installation
TH EH

19 - 26
(3/4" -
1 1/32") 0 - 6
(0" - 1/4")
75
(2 15/16") 0 - 6 7
40 19 - 26 (0" - 1/4")
(1 9/16") (3/4" - 1 1/32") 40
(1 9/16")

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Doors in wall recess

> Without a cabinet bottom panel

110 (4 11/32")
55 20 55 55
(2 5/32") (25/32") (2 5/32") (2 5/32")
0 - 6 Sliding and Roller Shutter Systems
40 (0" - 1/4") 40
(1 9/16") (1 9/16")

Left hand installation TH EH

19 - 26
(3/4" -
1 1/32")
19 - 26
(3/4" -
1 1/32")
20 20
(25/32") (25/32")

3 - 6
(1/8" - 1/4") 17
(11/16")

www.hafele.com/us FC 7.133
