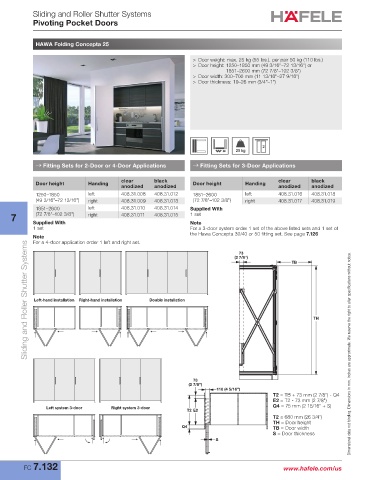

Sliding and Roller Shutter Systems
Pivoting Pocket Doors

HAWA Folding Concepta 25

> Door weight: max. 25 kg (55 lbs.), per pair 50 kg (110 lbs.)
> Door height: 1250–1850 mm (49 3/16"–72 13/16") or
1851–2600 mm (72 7/8"–102 3/8")
> Door width: 300–700 mm (11 13/16"–27 9/16")
> Door thickness: 19–26 mm (3/4"–1")

→ Fitting Sets for 2-Door or 4-Door Applications → Fitting Sets for 3-Door Applications

Door height Handing clear black Door height Handing clear black
anodized anodized anodized anodized
1250–1850 left 408.31.008 408.31.012 1851–2600 left 408.31.016 408.31.018
(49 3/16"–72 13/16") right 408.31.009 408.31.013 (72 7/8"–102 3/8") right 408.31.017 408.31.019
1851–2600 left 408.31.010 408.31.014 Supplied With
7 (72 7/8"–102 3/8") right 408.31.011 408.31.015 1 set
Supplied With Note
1 set For a 3-door system order 1 set of the above listed sets and 1 set of
the Hawa Concepta 30/40 or 50 fitting set. See page 7.126
Note
For a 4-door application order 1 left and right set.
Sliding and Roller Shutter Systems
73
(2 7/8")
TB

Left-hand installation Right-hand installation Double installation

TH

73 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(2 7/8")
110 (4 5/16")
T2 = TB + 73 mm (2 7/8") - Q4
E2 = T2 - 73 mm (2 7/8")
Left system 3-door Right system 3-door Q4 = 75 mm (2 15/16" + S)
T2 E2
T2 ≤ 680 mm (26 3/4")
TH = Door height
Q4 TB = Door width
S = Door thickness
S
