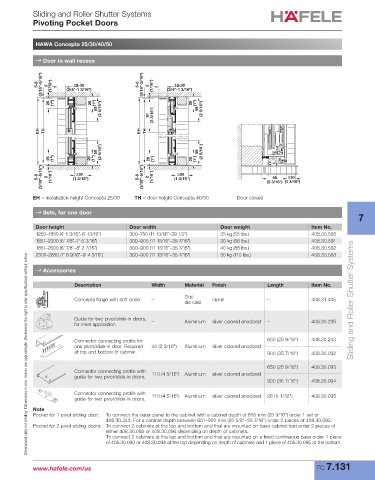

Sliding and Roller Shutter Systems
Pivoting Pocket Doors (2 5/16") 59 (2 5/16") 59 (2 5/16") 59 (2 5/16") 26 (1") 26 59 (1") (2 5/16") 26 59 (1") (2 5/16")
59
26 26 26 26 81 (3 3/16")
(1") (1") 26 (1") 26 (1") (1") (1") 26 (1") 26 (1")
HAWA Concepta 25/30/40/50 EH TH EH TH
3-6 (1/8"-1/4") 3-6 (1/8"-1/4") 19-30 19-30 3-6 (1/8"-1/4") 3-6 (1/8"-1/4") 19-30 19-30
(3/4"-1 3/16") (3/4"-1 3/16")
→ Door in wall recess (3/4"-1 3/16") (3/4"-1 3/16")
59 26 (1") (2 5/16") 26 (1") 26 (1") 59 (2 5/16")
(1")
26
(3/16"-5/16")
(3/16"-5/16")
(3/16"-5/16")
(1/16")
(1/16")
5-8
5-8 (3/16"-5/16") 2 (1/16") 5-8 (3/4"-1 3/16") (3/4"-1 3/16") 2 (1/16") 5-8 (3/4"-1 3/16") (3/4"-1 3/16") 5-8 (3/16"-5/16") 2 (1/16") (1 3/16") 5-8 (3/16"-5/16") 2 (1/16") (1 3/16")
19-30
19-30
19-30
19-30
2
2
30
30
26 (1") 26 (1") 26 59 (1") (2 5/16") 26 81 (3 3/16") (1") 59 (2 5/16") 81 (3 3/16") 26 59 (1") (2 5/16") 26 59 (1") (2 5/16")
EH TH EH TH EH TH EH TH
59 (2 5/16") 59 (2 5/16") 59 (2 5/16") 59 (2 5/16")
26 (1") 26 (1") 26 (1") 26 26 (1") (1") 26 (1") 26 (1") 26 (1")
(1/16")
(1/16")
30
30
30
30
5-8 (3/16"-5/16") 2 (1/16") 5-8 (3/16"-5/16") (1 3/16") (1 3/16") (3/16"-5/16") 2 (1/16") 5-8 (3/16"-5/16") (1 3/16") (1 3/16") (2 3/16") (1 3/16")
5-8
30
55
2
2
EH = installation height Concepta 25/30 TH = door height Concepta 40/50 Door closed
→ Sets, for one door
7
Door height Door width Door weight Item No.
1250–1850 (4' 1 3/16"–6' 13/16") 300–750 (11 13/16"–29 1/2") 25 kg (55 lbs.) 408.30.590
1851–2300 (6' 7/8"–7' 6 3/16") 300–900 (11 13/16"–35 7/16") 30 kg (66 lbs.) 408.30.591
1851–2500 (6' 7/8"–8' 2 7/16") 300–900 (11 13/16"–35 7/16") 40 kg (88 lbs.) 408.30.592
2301–2850 (7' 6 9/16"–9' 4 3/16") 300–900 (11 13/16"–35 7/16") 50 kg (110 lbs.) 408.30.593
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
55 30 55 30
(2 3/16") (1 3/16")
(2 3/16") (1 3/16")
→ Accessories
Description Width Material Finish Length Item No.
Concepta hinge with soft close – Zinc nickel – 408.31.405
die cast Sliding and Roller Shutter Systems
Guide for two pivot/slide-in doors, – Aluminum silver colored anodized – 408.30.295
for inset application
Connector connecting profile for 650 (25 9/16") 408.30.243
one pivot/slide-in door. Required 44 (2 3/16") Aluminum silver colored anodized
at top and bottom of cabinet. 900 (35 7/16") 408.30.092
650 (25 9/16") 408.30.093
Connector connecting profile with
guide for two pivot/slide-in doors. 110 (4 5/16") Aluminum silver colored anodized
900 (35 7/16") 408.30.094
Connector connecting profile with
guide for two pivot/slide-in doors. 110 (4 5/16”) Aluminum silver colored anodized 26 (1 1/32") 408.30.095
Note
Pocket for 1 pivot sliding door: To connect the outer panel to the cabinet with a cabinet depth of 650 mm (25 9/16") order 1 set of
408.30.243. For a cabinet depth between 651–900 mm (25 5/8"–35 7/16") order 2 pieces of 408.30.092.
Pocket for 2 pivot sliding doors: To connect 2 cabinets at the top and bottom and that are mounted on base cabinet feet order 2 pieces of
either 408.30.093 or 408.30.094 depending on depth of cabinets.
To connect 2 cabinets at the top and bottom and that are mounted on a fixed continuous base order 1 piece
of 408.30.093 or 408.30.094 at the top depending on depth of cabinets and 1 piece of 408.30.095 at the bottom.
www.hafele.com/us FC 7.131
