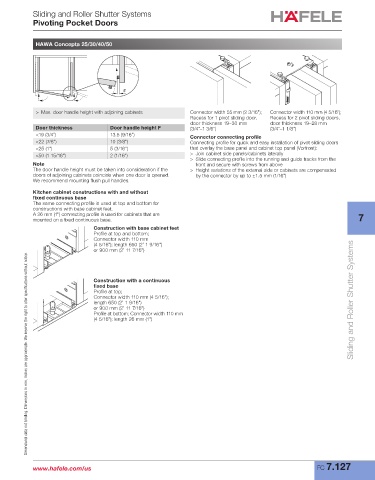

Sliding and Roller Shutter Systems
Pivoting Pocket Doors

HAWA Concepta 25/30/40/50

F

> Max. door handle height with adjoining cabinets Connector width 55 mm (2 3/16"); Connector width 110 mm (4 5/16");
Recess for 1 pivot sliding door, Recess for 2 pivot sliding doors,
door thickness 19–30 mm door thickness 19–28 mm
Door thickness Door handle height F (3/4"–1 3/6") (3/4"–1 1/8")
<19 (3/4") 13.5 (9/16") Connector connecting profile
<22 (7/8") 10 (3/8") Connecting profile for quick and easy installation of pivot sliding doors
<25 (1") 5 (3/16") that overlay the base panel and cabinet top panel (Vorfront):
<50 (1 15/16") 2 (1/16") > Join cabinet side panels/cabinets laterally
> Slide connecting profile into the running and guide tracks from the
Note front and secure with screws from above
The door handle height must be taken into consideration if the > Height variations of the external side or cabinets are compensated
doors of adjoining cabinets coincide when one door is opened. by the connector by up to ±1.5 mm (1/16")
We recommend mounting flush pull handles.
Kitchen cabinet constructions with and without
fixed continuous base
The same connecting profile is used at top and bottom for
constructions with base cabinet feet.
A 26 mm (1") connecting profile is used for cabinets that are
mounted on a fixed continuous base. 7
Construction with base cabinet feet
Profile at top and bottom;
Connector width 110 mm
(4 5/16"); length 650 (2’ 1 9/16")
or 900 mm (2’ 11 7/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Construction with a continuous
fixed base
Profile at top;
Connector width 110 mm (4 5/16");
length 650 (2’ 1 9/16") Sliding and Roller Shutter Systems
or 900 mm (2’ 11 7/16")
Profile at bottom; Connector width 110 mm
(4 5/16"); length 26 mm (1")

www.hafele.com/us FC 7.127
