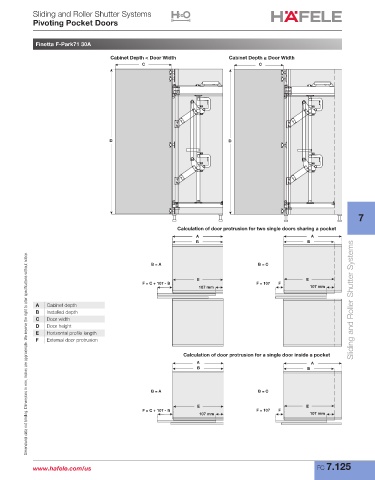

P. 645
Sliding and Roller Shutter Systems
Pivoting Pocket Doors
Finetta F-Park71 30A
Cabinet Depth < Door Width Cabinet Depth ≥ Door Width
C C
D D
7
Calculation of door protrusion for two single doors sharing a pocket
A A
B B
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
B = A B = C
E E
F = C + 107 - B F = 107 F
107 mm 107 mm
A Cabinet depth Sliding and Roller Shutter Systems
B Installed depth
C Door width
D Door height
E Horizontal profile length
F External door protrusion
Calculation of door protrusion for a single door inside a pocket
A A
B B
B = A B = C
E E
F = C + 107 - B F = 107 F
107 mm 107 mm
www.hafele.com/us FC 7.125
