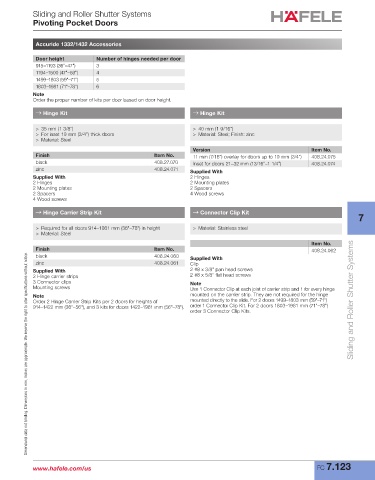

Sliding and Roller Shutter Systems
Pivoting Pocket Doors

Accuride 1332/1432 Accessories

Door height Number of hinges needed per door
915–1193 (36"–47") 3
1194–1500 (47"–59") 4
1499–1803 (59"–71") 5
1803–1981 (71"–78") 6
Note
Order the proper number of kits per door based on door height.
→ Hinge Kit → Hinge Kit

> 35 mm (1 3/8") > 40 mm (1 9/16")
> For inset 19 mm (3/4") thick doors > Material: Steel; Finish: zinc
> Material: Steel
Version Item No.
Finish Item No. 11 mm (7/16") overlay for doors up to 19 mm (3/4") 408.24.075
black 408.27.070 Inset for doors 21–32 mm (13/16"–1 1/4") 408.24.074
zinc 408.24.071 Supplied With
Supplied With 2 Hinges
2 Hinges 2 Mounting plates
2 Mounting plates 2 Spacers
2 Spacers 4 Wood screws
4 Wood screws

→ Hinge Carrier Strip Kit → Connector Clip Kit
7
> Required for all doors 914–1981 mm (36"–78") in height > Material: Stainless steel
> Material: Steel
Item No.
Finish Item No. 408.24.062
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
black 408.24.060 Supplied With
zinc 408.24.061 Clip
Supplied With 2 #8 x 3/8" pan head screws
2 Hinge carrier strips 2 #8 x 5/8" flat head screws
3 Connector clips Note
Mounting screws Use 1 Connector Clip at each joint of carrier strip and 1 for every hinge
Note mounted on the carrier strip. They are not required for the hinge
Order 2 Hinge Carrier Strip Kits per 2 doors for heights of mounted directly to the slide. For 2 doors 1499–1803 mm (59"–71") Sliding and Roller Shutter Systems
914–1422 mm (36"–56"), and 3 kits for doors 1422–1981 mm (56"–78"). order 1 Connector Clip Kit. For 2 doors 1803–1981 mm (71"–78")
order 3 Connector Clip Kits.

www.hafele.com/us FC 7.123
