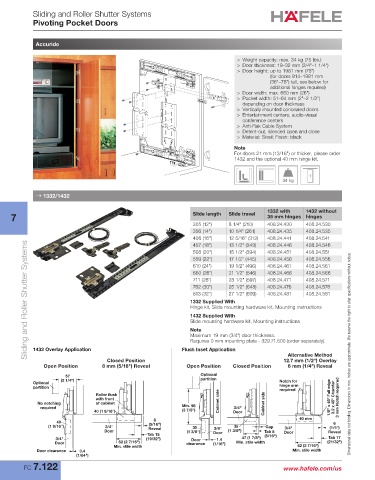

Sliding and Roller Shutter Systems
Pivoting Pocket Doors

Accuride

> Weight capacity: max. 34 kg (75 lbs.)
> Door thickness: 19–32 mm (3/4"–1 1/4")
> Door height: up to 1981 mm (78")
(for doors 914–1981 mm
(36"–78") tall, see below for
additional hinges required)
> Door width: max. 660 mm (26")
> Pocket width: 51–64 mm (2"–2 1/2")
depending on door thickness
> Vertically mounted concealed doors
> Entertainment centers, audio-visual
conference centers
> Anti-Rak Cable System
> Detent-out, silenced open and close
> Material: Steel; Finish: black

Note
For doors 21 mm (13/16") or thicker, please order
1432 and the optional 40 mm hinge kit.

34

→ 1332/1432

1332 with 1432 without
7 Slide length Slide travel 35 mm hinges hinges
305 (12") 8 1/4" (210) 408.24.430 408.24.530
356 (14") 10 1/4" (261) 408.24.435 408.24.535
406 (16") 12 5/16" (312) 408.24.441 408.24.541
Sliding and Roller Shutter Systems
457 (18") 13 1/2" (343) 408.24.446 408.24.546
508 (20") 15 1/2" (394) 408.24.451 408.24.551
559 (22") 17 1/2" (445) 408.24.456 408.24.556
610 (24") 19 1/2" (496) 408.24.461 408.24.561
660 (26") 21 1/2" (546) 408.24.466 408.24.566
711 (28") 23 1/2" (597) 408.24.471 408.24.571
762 (30") 25 1/2" (648) 408.24.476 408.24.576
813 (32") 27 1/2" (699) 408.24.481 408.24.581
1332 Supplied With
Hinge kit, Slide mounting hardware kit, Mounting instructions
1432 Supplied With
Slide mounting hardware kit, Mounting instructions
Note
Maximum 19 mm (3/4") door thickness.
Requires 0 mm mounting plate - 329.71.500 (order separately).
1432 Overlay Application Flush Inset Application
Alternative Method Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Closed Position 12.7 mm (1/2") Overlay
Open Position 8 mm (5/16") Reveal Open Position Closed Position 6 mm (1/4") Reveal
57 Optional
(2 1/4") partition Notch for
Optional
partition hinge arm
required
Roller flush
with front 1/8" x 45º Full edge 3.2 x 45º Chamfer 3 mm Notch required
No notching of cabinet Cabinet side Cabinet side
required Min. 98 3/4"
40 (1 9/16") (3 7/8") Door
8
40 (5/16") 40 mm 6
(1 9/16") 3/4" Reveal 35 3/4" 35 Gap 3/4" (1/4")
Door (1 3/8") Door (1 3/8") Tab 8 Door Reveal
Tab 15 (5/16")
3/4" (19/32") Door 1.4 47 (1 7/8") Tab 17
Door 62 (2 7/16") clearance (1/16") Min. stile width (21/32")
Min. stile width 62 (2 7/16")
Door clearance 0.4 Min. stile width
(1/64")
FC 7.122 www.hafele.com/us
