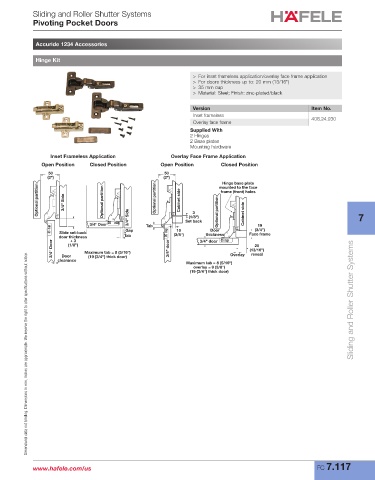

Sliding and Roller Shutter Systems
Pivoting Pocket Doors

Accuride 1234 Accessories

Hinge Kit

> For inset frameless application/overlay face frame application
> For doors thickness up to: 20 mm (13/16")
> 35 mm cup
> Material: Steel; Finish: zinc-plated/black

Version Item No.
Inset frameless
Overlay face frame 408.24.030
Supplied With
2 Hinges
2 Base plates
Mounting hardware
Inset Frameless Application Overlay Face Frame Application
Open Position Closed Position Open Position Closed Position
50 50
(2") (2") mounted to the face
Hinge base plate
Optional partition 3/4" Side Optional partition Optional partition Cabinet side frame (front) holes

3
(1/8")
3/4" Door 35 cup 3/4" Side Tab Set back Optional partition Cabinet side 19 7
35 cup Slide set-back Gap 35 cup 10 Door (3/4")
thickness
door thickness Tab (3/8") 3/4" door 35 cup Face frame
+ 3
3/4" Door (1/8”) Maximum tab = 8 (5/16”) 3/4" door (13/16")
20
reveal
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Door
clearance (19 {3/4"} thick door) Overlay
Maximum tab = 8 (5/16")
overlay = 9 (3/8")
(19 {3/4"} thick door) Sliding and Roller Shutter Systems

www.hafele.com/us FC 7.117
