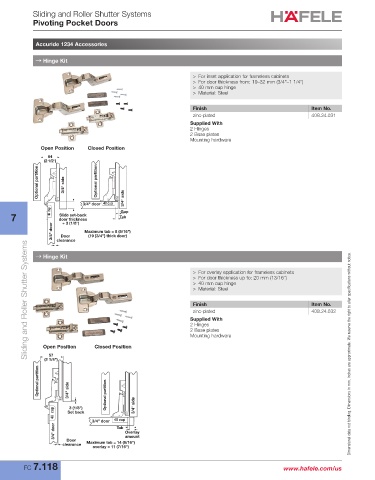

Sliding and Roller Shutter Systems
Pivoting Pocket Doors

Accuride 1234 Accessories

→ Hinge Kit

> For inset application for frameless cabinets
> For door thickness from: 19–32 mm (3/4"–1 1/4")
> 40 mm cup hinge
> Material: Steel

Finish Item No.
zinc-plated 408.24.031
Supplied With
2 Hinges
2 Base plates
Mounting hardware
Open Position Closed Position
64
(2 1/2")
Optional partition 3/4" side Optional partition

3/4" door 40 cup 3/4" side
Gap
7 40 cup door thickness Tab
Slide set-back
+ 3 (1/8")
3/4" door clearance Maximum tab = 8 (5/16")
(19 {3/4"} thick door)
Door
Sliding and Roller Shutter Systems
→ Hinge Kit

> For overlay application for frameless cabinets
> For door thickness up to: 20 mm (13/16")
> 40 mm cup hinge
> Material: Steel

Finish Item No.
zinc-plated 408.24.032
Supplied With
2 Hinges
2 Base plates
Mounting hardware
Open Position Closed Position
57 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(2 1/4")
Optional partition 3/4" side Optional partition

3 (1/8")
40 cup Set back 3/4" side
3/4" door 40 cup
3/4" door Tab Overlay
amount
Door
clearance Maximum tab = 14 (9/16")
overlay = 11 (7/16")

FC 7.118 www.hafele.com/us
