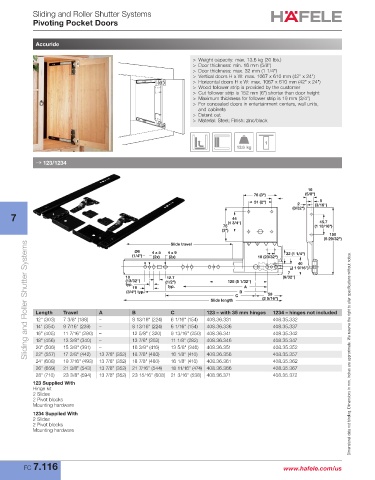

Sliding and Roller Shutter Systems
Pivoting Pocket Doors

Accuride

> Weight capacity: max. 13.6 kg (30 lbs.)
> Door thickness: min. 16 mm (5/8")
> Door thickness: max. 32 mm (1 1/4")
> Vertical doors H x W: max. 1067 x 610 mm (42" x 24")
> Horizontal doors H x W: max. 1067 x 610 mm (42" x 24")
> Wood follower strip is provided by the customer
> Cut follower strip is 152 mm (6") shorter than door height
> Maximum thickness for follower strip is 19 mm (3/4")
> For concealed doors in entertainment centers, wall units,
and cabinets
> Detent out
> Material: Steel; Finish: zinc/black

13.6
→ 123/1234

16
76 (3") (5/8")
5
51 (2") 2 (3/16")
(3/32")
7 44
45.7
75 (1 3/4") (1 13/16")
(3")
150
(5 29/32")
Sliding and Roller Shutter Systems
Slide travel
Ø6 4 x 5 4 x 9
(1/4") (2x) (2x) 18 (23/32") 32 (1 1/4")
40
( 1 9/16")
7
10 12.7 (9/32")
(13/32") (1/2") 128 (5 1/32")
typ.
19 typ. A
(3/4") typ. B
C 59
Slide length (2 5/16")
Length Travel A B C 123 – with 35 mm hinges 1234 – hinges not included
12" (303) 7 3/8" (188) – 8 13/16" (224) 6 1/16" (154) 408.36.331 408.35.332
14" (354) 9 7/16" (239) – 8 13/16" (224) 6 1/16" (154) 408.36.336 408.35.337
16" (405) 11 7/16" (290) – 12 5/8" ( 320) 9 13/16" (250) 408.36.341 408.35.342
18" (456) 13 3/8" (340) – 13 7/8" (352) 11 1/8" (282) 408.36.346 408.35.347
20" (506) 15 3/8" (391) – 16 3/8" (416) 13 5/8" (346) 408.36.351 408.35.352
22" (557) 17 3/8" (442) 13 7/8" (352) 18 7/8" (480) 16 1/8" (410) 408.36.356 408.35.357 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
24" (608) 19 7/16" (493) 13 7/8" (352) 18 7/8" (480) 16 1/8" (410) 408.36.361 408.35.362
26" (659) 21 3/8" (543) 13 7/8" (352) 21 7/16" (544) 18 11/16" (474) 408.36.366 408.35.367
28" (710) 23 3/8" (594) 13 7/8" (352) 23 15/16" (608) 21 3/16" (538) 408.36.371 408.35.372
123 Supplied With
Hinge kit
2 Slides
2 Pivot blocks
Mounting hardware
1234 Supplied With
2 Slides
2 Pivot blocks
Mounting hardware

FC 7.116 www.hafele.com/us
