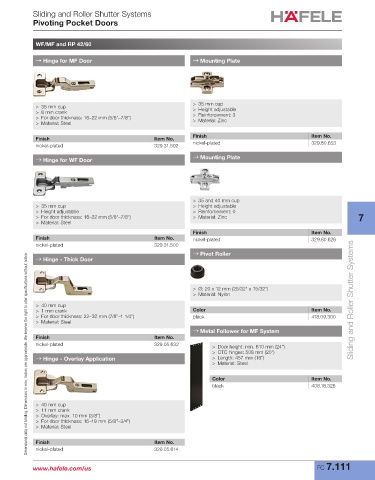

Sliding and Roller Shutter Systems
Pivoting Pocket Doors

WF/MF and RP 42/60

→ Hinge for MF Door → Mounting Plate

> 35 mm cup
> 35 mm cup > Height adjustable
> 8 mm crank > Reinforcement: 3
> For door thickness: 16–22 mm (5/8"–7/8") > Material: Zinc
> Material: Steel

Finish Item No. Finish Item No.
nickel-plated 329.31.502 nickel-plated 329.80.653

→ Hinge for WF Door → Mounting Plate

> 35 and 40 mm cup
> 35 mm cup > Height adjustable
> Height adjustable > Reinforcement: 0
> For door thickness: 16–22 mm (5/8"–7/8") > Material: Zinc 7
> Material: Steel
Finish Item No.
Finish Item No. nickel-plated 329.80.626
nickel-plated 329.31.500
→ Pivot Roller
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Hinge - Thick Door

> Ø: 20 x 12 mm (25/32" x 15/32")
> Material: Nylon

> 40 mm cup Sliding and Roller Shutter Systems
> 1 mm crank Color Item No.
> For door thickness: 22–32 mm (7/8"–1 1/4") black 418.09.300
> Material: Steel
→ Metal Follower for MF System
Finish Item No.
nickel-plated 329.05.632 > Door height: min. 610 mm (24")
> CTC hinges: 508 mm (20")
→ Hinge - Overlay Application > Length: 457 mm (18")
> Material: Steel

Color Item No.
black 408.18.326

> 40 mm cup
> 11 mm crank
> Overlay: max. 10 mm (3/8")
> For door thickness: 16–19 mm (5/8"–3/4")
> Material: Steel

Finish Item No.
nickel-plated 329.05.614

www.hafele.com/us FC 7.111
