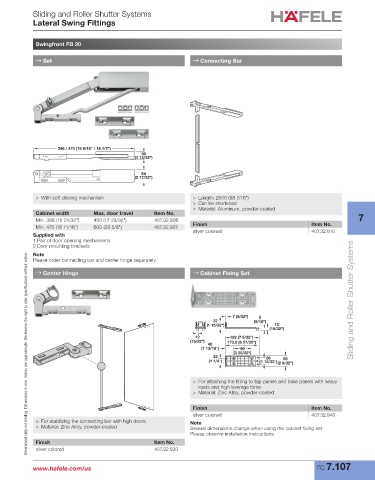

Sliding and Roller Shutter Systems
Lateral Swing Fittings

Swingfront FB 20

→ Set → Connecting Bar

395 / 470 (15 9/16" / 18 1/2")
36
(1 13/32")

64
(2 17/32")

> With soft closing mechanism > Length: 2500 (98 7/16")
> Can be shortened
> Material: Aluminum, powder-coated
Cabinet width Max. door travel Item No.
Min. 398 (15 21/32") 450 (17 23/32") 407.32.906 7
Min. 475 (18 11/16") 600 (23 5/8") 407.32.907 Finish Item No.
Supplied with silver colored 407.32.910
1 Pair of door opening mechanisms
2 Door mounting brackets
Note
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Please order connecting bar and center hinge separately.
→ Center Hinge → Cabinet Fixing Set

7 (9/32") 8 Sliding and Roller Shutter Systems
37 (5/16")
(1 15/32") 12
(15/32")
12 182 (7 5/32")
(15/32") 173.5 (6 27/32")
46
(1 13/16") 96
(3 25/32")
32 36 58
(1 1/4") (1 13/32") (2 9/32")

> For attaching the fitting to top panels and base panels with heavy
loads and high leverage force
> Material: Zinc Alloy, powder-coated

Finish Item No.
silver colored 407.32.940
> For stabilizing the connecting bar with high doors Note
> Material: Zinc Alloy, powder-coated Several dimensions change when using the cabinet fixing set.
Please observe installation instructions.
Finish Item No.
silver colored 407.32.930

www.hafele.com/us FC 7.107
