Sliding and Roller Shutter Systems
Vertical Sliding Door Systems

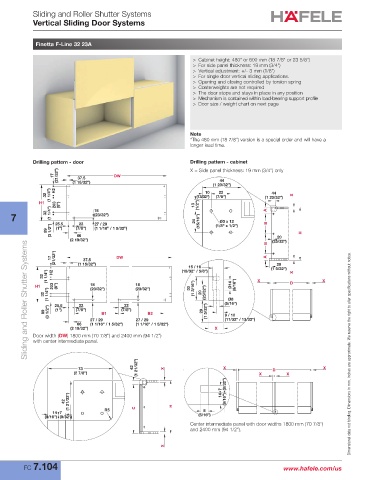

Finetta F-Line 32 23A

> Cabinet height: 480* or 600 mm (18 7/8" or 23 5/8")
> For side panel thickness: 19 mm (3/4")
> Vertical adjustment: +/- 3 mm (1/8")
> For single door vertical sliding applications.
> Opening and closing controlled by torsion spring
> Conterweights are not required
> The door stops and stays in place in any position
> Mechanism is contained within load-bearing support profile
> Door size / weight chart on next page

Note
*The 480 mm (18 7/8") version is a special order and will have a
longer lead time.

Drilling pattern - door Drilling pattern - cabinet

17 (21/32”) 37.5 DW X = Side panel thickness: 19 mm (3/4") only
44
(1 15/32”)
(1 23/32”)
22
10
44
32 (1 1/4”) (13/32”) (7/8”) (1 23/32”)
203 (8”) 18 13 (1/2”)
7 32 (1 1/4”) (23/32”) 24 (15/16”) Ø3 x 12
22
(1 1/16” / 1 5/32”)
(1”)
89 (3 1/2”) 25.5 (7/8”) 27 / 29 (1/8" x 1/2”)
66
20
(2 19/32”) (25/32”)
Sliding and Roller Shutter Systems
17 (21/32”) 37.5 DW
(1 15/32”)
29
15 / 16 (1 5/32”)
(19/32” / 5/8”)
32 (1 1/4”)
203 (8”) 18 18 30 (1 3/16”) Ø14 (9/16”)
(23/32”)
(23/32”)
32 (1 1/4”) 20 (25/32”) Ø8
25.5 22 22 (5/16”)
89 (3 1/2”) (1”) (7/8”) (7/8”) 29 (1 5/32”) 9 / 10
66 27 / 29 27 / 29 (11/32” / 13/32”)
(1 1/16” / 1 5/32”)
(1 1/16” / 1 5/32”)
(2 19/32”)
Door width (DW) 1800 mm (70 7/8") and 2400 mm (94 1/2")
with center intermediate panel. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

73 42 (1 21/32”)
(2 7/8”)
(9/32”)
7
42 (1 21/32”) 14 (9/16”)

14 7 8
(9/16”) (9/32”) (5/16”)
Center intermediate panel with door widths 1800 mm (70 7/8")
and 2400 mm (94 1/2").

FC 7.104 www.hafele.com/us
