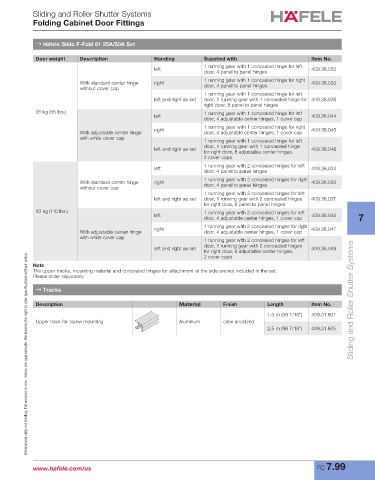

Sliding and Roller Shutter Systems
Folding Cabinet Door Fittings

→ Häfele Slido F-Fold 61 25A/50A Set

Door weight Description Handing Supplied with Item No.
1 running gear with 1 concealed hinge for left
left 409.36.032
door, 4 panel to panel hinges
1 running gear with 1 concealed hinge for right
With standard center hinge right 409.36.033
without cover cap door, 4 panel to panel hinges
1 running gear with 1 concealed hinge for left
left and right as set door, 1 running gear with 1 concealed hinge for 409.36.036
right door, 8 panel to panel hinges
25 kg (55 lbs.) 1 running gear with 1 concealed hinge for left
left 409.36.044
door, 4 adjustable center hinges, 1 cover cap
1 running gear with 1 concealed hinge for right
right 409.36.045
With adjustable center hinge door, 4 adjustable center hinges, 1 cover cap
with white cover cap
1 running gear with 1 concealed hinge for left
door, 1 running gear with 1 concealed hinge
left and right as set 409.36.048
for right door, 8 adjustable center hinges,
2 cover caps
1 running gear with 2 concealed hinges for left
left 409.36.034
door, 4 panel to panel hinges
With standard center hinge right 1 running gear with 2 concealed hinges for right 409.36.035
without cover cap door, 4 panel to panel hinges
1 running gear with 2 concealed hinges for left
left and right as set door, 1 running gear with 2 concealed hinges 409.36.037
for right door, 8 panel to panel hinges
50 kg (110 lbs.) 1 running gear with 2 concealed hinges for left
left 409.36.046
door, 4 adjustable center hinges, 1 cover cap 7
1 running gear with 2 concealed hinges for right
With adjustable center hinge right door, 4 adjustable center hinges, 1 cover cap 409.36.047
with white cover cap
1 running gear with 2 concealed hinges for left
left and right as set door, 1 running gear with 2 concealed hinges 409.36.049
for right door, 8 adjustable center hinges,
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
2 cover caps
Note
The upper tracks, mounting material and concealed hinges for attachment at the side are not included in the set.
Please order separately.
→ Tracks

Description Material Finish Length Item No. Sliding and Roller Shutter Systems

1.5 m (59 1/16") 409.31.601
Upper track for screw mounting Aluminum clear anodized
2.5 m (98 7/16") 409.31.605

www.hafele.com/us FC 7.99
