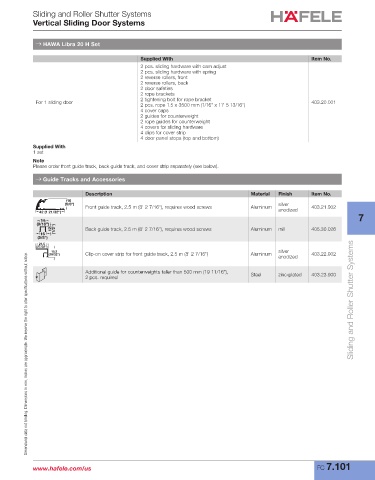

Sliding and Roller Shutter Systems
Vertical Sliding Door Systems

→ HAWA Libra 20 H Set

Supplied With Item No.
2 pcs. sliding hardware with cam adjust
2 pcs. sliding hardware with spring
2 reverse rollers, front
2 reverse rollers, back
2 door safeties
2 rope brackets
2 tightening bolt for rope bracket
For 1 sliding door 403.20.001
2 pcs. rope 1.5 x 3500 mm (1/16" x 11' 5 13/16")
4 cover caps
2 guides for counterweight
2 rope guides for counterweight
4 covers for sliding hardware
4 clips for cover strip
4 door panel stops (top and bottom)
Supplied With
1 set
Note
Please order front guide track, back guide track, and cover strip separately (see below).

→ Guide Tracks and Accessories

Description Material Finish Item No.
16
(5/8") silver
Front guide track, 2.5 m (8' 2 7/16"), requires wood screws Aluminum 403.21.902
42 (1 21/32") anodized
14 7
(9/16")
12 (1/2") Back guide track, 2.5 m (8' 2 7/16"), requires wood screws Aluminum mill 405.30.026
16
(5/8")
21.5
(27/32")
15.3 silver
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(19/32") Clip-on cover strip for front guide track, 2.5 m (8' 2 7/16") Aluminum 403.22.902
anodized
Additional guide for counterweights taller than 500 mm (19 11/16"),
2 pcs. required Steel zinc-plated 403.23.900 Sliding and Roller Shutter Systems

www.hafele.com/us FC 7.101
