Calibrated Height Adjustment
Height adjustment of hinges assembled with the sliding components is achieved through a cam. Through this alignment a parallel movement of
the component in the track is achieved. The result is a smooth movment without any binding.
Note
The sliding block does not have a load-bearing function. Therefore it must slide freely inside the track.
30
D
37+D
(1 15/32"+D)
Sliding and Roller Shutter Systems (1 3/16")
Folding Cabinet Door Fittings
Concertina
+2 mm -2 mm
(+3/32" -3/32")
→ Depth Adjustment
> Depth adjustment of the hinges mounted on the sliding component
is achieved through the fixing screw of the same hinge
> Depth adjustment should be made in conjunction with the
hinges mounted on the opposite door
> This adjustment is useful to keep the “L” value constant all along
the front of the furniture

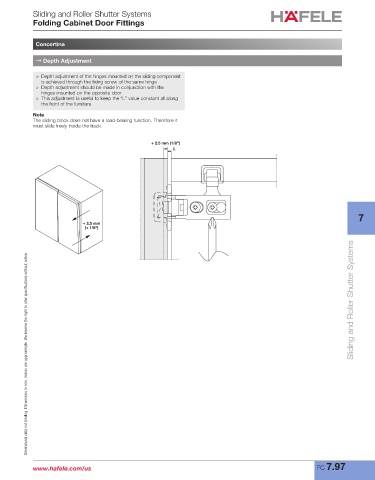

Depth Adjustment
Note
The sliding block does not have a load-bearing function. Therefore it
Depth adjustment of the hinges mounted on the sliding component is achieved through the fixing screw of the same hinge. Depth adjustment
must slide freely inside the track.
should be made in conjunction with the hinges mounted on the opposite door. This adjustment is useful to keep the “L” value constant all along
the front of the furniture.
+ 2.5 mm (1/8")
L

7
+ 2.5 mm
(+ 1/8") Sliding and Roller Shutter Systems
