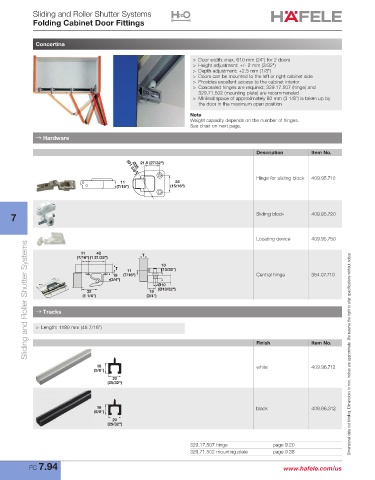

Sliding and Roller Shutter Systems
Folding Cabinet Door Fittings

Concertina

> Door width: max. 610 mm (24") for 2 doors
> Height adjustment: +/- 2 mm (3/32")
> Depth adjustment: +2.5 mm (1/8")
> Doors can be mounted to the left or right cabinet side
> Provides excellent access to the cabinet interior
> Concealed hinges are required; 329.17.507 (hinge) and
329.71.502 (mounting plate) are recommended
> Minimal space of approximately 80 mm (3 1/8") is taken up by
the door in the maximum open position

Note
Weight capacity depends on the number of hinges.
See chart on next page.
→ Hardware

Description Item No.

21.5 (27/32")
Ø35
(Ø1 3/8")
Hinge for sliding block 409.95.710
11 24
(7/16") (15/16")

7 Sliding block 409.95.720

Locating device 409.95.750
Sliding and Roller Shutter Systems
11 42 T
(7/16") (1 21/32")
10
T 11 (13/32")
19 (7/16") Central hinge 354.07.710
(3/4")
Ø10
32 19 (Ø13/32")
(1 1/4") (3/4")

→ Tracks

> Length: 1180 mm (46 7/16")

Finish Item No.

16 white 409.96.712 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(5/8")
20
(25/32")

16 black 409.96.312
(5/8")
20
(25/32")

329.17.507 hinge page 9.20
329.71.502 mounting plate page 9.38
FC 7.94 www.hafele.com/us
