Sliding and Roller Shutter Systems
Accessories

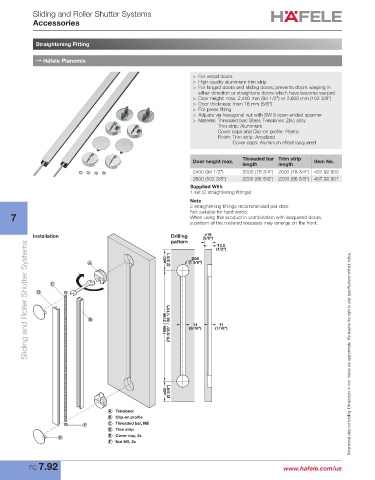

Straightening Fitting

→ Häfele Planomix

> For wood doors
> High-quality aluminium trim strip
> For hinged doors and sliding doors; prevents doors warping in
either direction or straightens doors which have become warped
> Door height: max. 2,400 mm (94 1/2") or 2,600 mm (102 3/8")
> Door thickness: from 16 mm (5/8")
> For press fitting
> Adjusts via hexagonal nut with SW 8 open-ended spanner
> Material: Threaded bar: Steel; Tensioner: Zinc alloy
Trim strip: Aluminium
Cover caps and Clip-on profile: Plastic
Finish: Trim strip: Anodized
Cover caps: Aluminum effect lacquered

Door height max. Threaded bar Trim strip Item No.
length length
2400 (94 1/2") 2000 (78 3/4") 2000 (78 3/4") 407.92.900
2600 (102 3/8") 2200 (86 5/8") 2200 (86 5/8") 407.92.901
Supplied With
1 set (2 straightening fittings)
Note
2 straightening fittings recommended per door.
Not suitable for hard wood.
7 When using this product in combination with lacquered doors,
a pattern of the routered recesses may emerge on the front.
≥16
Installation Drilling (5/8")
pattern
Sliding and Roller Shutter Systems
12.5
(1/2")
Ø35
≥60 (2 3/8") (1 3/8")

1986 / 2186 (78 3/16" / 86 1/16") (9/16") (7/16") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
14
11

≥60 (2 3/8")

A Tensioner
B Clip-on profile
C Threaded bar, M5
D Trim strip
E Cover cap, 2x
F Nut M5, 2x

FC 7.92 www.hafele.com/us
