Sliding and Roller Shutter Systems
Sliding Glass Door Fittings

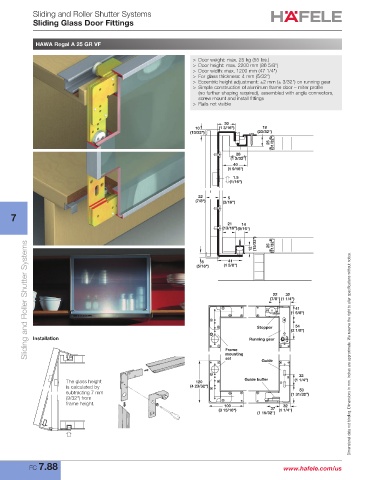

HAWA Regal A 25 GR VF

> Door weight: max. 25 kg (55 lbs.)
> Door height: max. 2200 mm (86 5/8")
> Door width: max. 1200 mm (47 1/4")
> For glass thickness: 4 mm (5/32")
> Eccentric height adjustment: ±2 mm (± 3/32") on running gear
> Simple construction of aluminum frame door – miter profile
(no further shaping required), assembled with angle connectors,
screw mount and install fittings
> Rails not visible

30
10 (1 3/16") 18
(13/32") (23/32")
25 (31/32")
28
(1 3/32")
40
(1 9/16")
1.5
(1/16")

22 5
(7/8") (3/16")
7
21 14
(13/16") (9/16")
(15/32") 25 (31/32")
Sliding and Roller Shutter Systems
12

8 41
(5/16") (1 5/8")

22 32
(7/8") (1 1/4")
41
(1 5/8")

Stopper 54
(2 1/8")
Installation Running gear

Frame
mounting Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
set Guide

32
The glass height 120 Guide buffer (1 1/4")
is calculated by (4 23/32")
50
subtracting 7 mm (1 31/32")
(9/32") from
frame height. 100 32
(3 15/16") 37 (1 1/4")
(1 15/32")

FC 7.88 www.hafele.com/us
