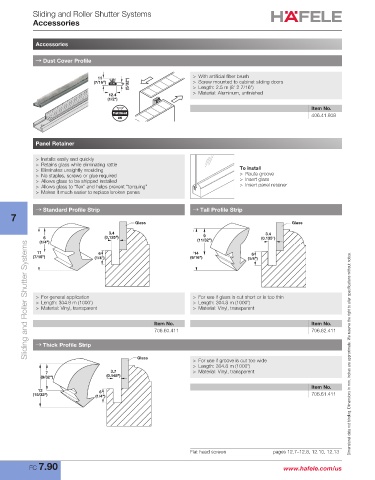

Sliding and Roller Shutter Systems
Accessories

Accessories

→ Dust Cover Profile

11 > With artificial fiber brush
(7/16") 4 (5/32") > Screw mounted to cabinet sliding doors
> Length: 2.5 m (8' 2 7/16")
12.4 > Material: Aluminum, unfinished
(1/2")
Item No.
Flat Head 406.41.808
#5

Panel Retainer

> Installs easily and quickly
> Retains glass while eliminating rattle
> Eliminates unsightly moulding To install
> No staples, screws or glue required > Route groove
> Allows glass to be shipped installed > Insert glass
> Allows glass to “flex” and helps prevent “torquing” > Insert panel retainer
> Makes it much easier to replace broken panes

→ Standard Profile Strip → Tall Profile Strip
7
Glass Glass
3.4 3.4
6 (0.135") 9 (0.135")
(1/4") (11/32")
Sliding and Roller Shutter Systems
11 6 14 6
(7/16") (1/4") (9/16") (1/4")

> For general application > For use if glass is cut short or is too thin
> Length: 304.8 m (1000') > Length: 304.8 m (1000')
> Material: Vinyl, transparent > Material: Vinyl, transparent

Item No. Item No.
706.60.411 706.62.411

→ Thick Profile Strip
Glass Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> For use if groove is cut too wide
> Length: 304.8 m (1000')
7 3.7 > Material: Vinyl, transparent
(9/32") (0.145")
Item No.
12 6
(15/32") (1/4") 706.61.411

Flat head screws pages 12.7–12.8, 12.10, 12.13
FC 7.90 www.hafele.com/us
