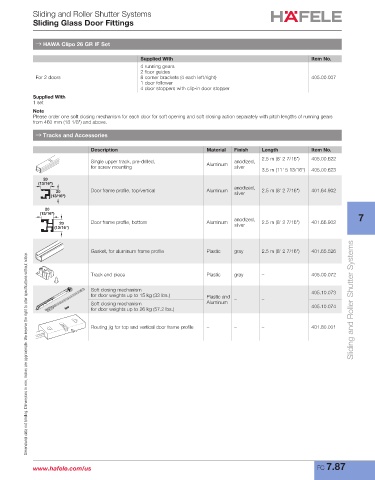

Sliding and Roller Shutter Systems
Sliding Glass Door Fittings

→ HAWA Clipo 26 GR IF Set

Supplied With Item No.
4 running gears
2 floor guides
For 2 doors 8 corner brackets (4 each left/right) 405.00.007
1 door follower
4 door stoppers with clip-in door stopper
Supplied With
1 set
Note
Please order one soft closing mechanism for each door for soft opening and soft closing action separately with pitch lengths of running gears
from 460 mm (18 1/8") and above.

→ Tracks and Accessories

Description Material Finish Length Item No.
Single upper track, pre-drilled, anodized, 2.5 m (8' 2 7/16") 405.00.622
for screw mounting Aluminum silver
3.5 m (11' 5 13/16") 405.00.623
20
(13/16") anodized,
20 Door frame profile, top/vertical Aluminum silver 2.5 m (8' 2 7/16") 401.64.902
(13/16")

20
(13/16") 7
20 Door frame profile, bottom Aluminum anodized, 2.5 m (8' 2 7/16") 401.66.902
silver
(13/16")

Gasket, for aluminum frame profile Plastic gray 2.5 m (8' 2 7/16") 401.65.526
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Track end piece Plastic gray – 405.00.072

Soft closing mechanism 405.10.073
for door weights up to 15 kg (33 lbs.) Plastic and – –
Soft closing mechanism Aluminum Sliding and Roller Shutter Systems
for door weights up to 26 kg (57.2 lbs.) 405.10.074

Routing jig for top and vertical door frame profile – – – 401.80.001

www.hafele.com/us FC 7.87
