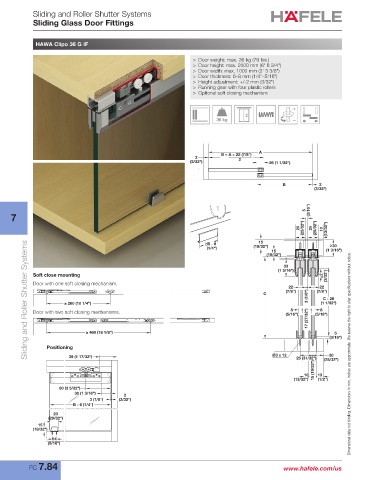

Sliding and Roller Shutter Systems
Sliding Glass Door Fittings

HAWA Clipo 36 G IF

> Door weight: max. 36 kg (79 lbs.)
> Door height: max. 2000 mm (6' 6 3/4")
> Door width: max. 1000 mm (3' 3 3/8")
> Door thickness: 6–8 mm (1/4"–5/16")
> Height adjustment: +/-2 mm (3/32")
> Running gear with four plastic rollers
> Optional soft closing mechanism

36

A
B = A + 22 (7/8")
2 2
(3/32") 26 (1 1/32")

B 2
(3/32")

5 (3/16")
7
20 (25/32") 20 (25/32") 10 (13/32")

Sliding and Roller Shutter Systems
B - 6 15 30
(1/4") (19/32") 15 (1 3/16")
(19/32")
33
(1 5/16")
Soft close mounting ±2 (3/32")
Door with one soft closing mechanism.
22 22
(7/8") (7/8")
C 3 (1/8")
C - 26
≥ 260 (10 1/4”) (1 1/32")
8
8
17 (27/32")
Door with two soft closing mechanisms. (5/16") (5/16")
≥ 460 (18 1/8”) 5
(3/16")
Positioning
20
39 (1 17/32") Ø3 x 12 25 (31/32") (25/32") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
15 (19/32")
10 13
(13/32") (1/2")
80 (3 5/32")
30 (1 3/16") 2
3 (1/8") (3/32")
B - 6 (1/4")
23
(29/32")
15
(19/32")
14
(9/16")

FC 7.84 www.hafele.com/us
