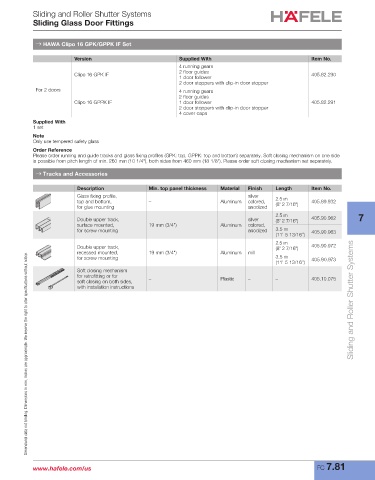

Sliding and Roller Shutter Systems
Sliding Glass Door Fittings

→ HAWA Clipo 16 GPK/GPPK IF Set

Version Supplied With Item No.
4 running gears
2 floor guides
Clipo 16 GPK IF 405.82.290
1 door follower
2 door stoppers with clip-in door stopper
For 2 doors 4 running gears
2 floor guides
Clipo 16 GPPK IF 1 door follower 405.82.291
2 door stoppers with clip-in door stopper
4 cover caps
Supplied With
1 set
Note
Only use tempered safety glass
Order Reference
Please order running and guide tracks and glass fixing profiles (GPK: top, GPPK: top and bottom) separately. Soft closing mechanism on one side
is possible from pitch length of min. 260 mm (10 1/4"), both sides from 460 mm (18 1/8"). Please order soft closing mechanism set separately.

→ Tracks and Accessories

Description Min. top panel thickness Material Finish Length Item No.
Glass fixing profile, silver 2.5 m
top and bottom, – Aluminum colored, (8' 2 7/16") 405.89.932
for glue mounting anodized
2.5 m 7
Double upper track, silver (8' 2 7/16") 405.90.962
surface mounted, 19 mm (3/4") Aluminum colored,
for screw mounting anodized 3.5 m 405.90.963
(11' 5 13/16")
2.5 m
Double upper track, (8' 2 7/16") 405.90.972
recessed mounted, 19 mm (3/4") Aluminum mill
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
for screw mounting 3.5 m 405.90.973
(11' 5 13/16")
Soft closing mechanism
for retrofitting or for
soft closing on both sides, – Plastic – – 405.10.075
with installation instructions Sliding and Roller Shutter Systems

www.hafele.com/us FC 7.81
