Sliding and Roller Shutter Systems
Sliding Glass Door Fittings

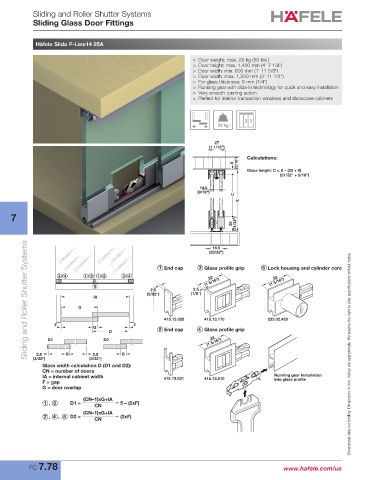

Häfele Slido F-Line14 25A

> Door weight: max. 25 kg (55 lbs.)
> Door height: max. 1,400 mm (4' 7 1/8")
> Door width: min. 600 mm (1' 11 5/8")
> Door width: max. 1,200 mm (3' 11 1/4")
> For glass thickness: 6 mm (1/4")
> Running gear with slide-in technology for quick and easy installation
> Very smooth running action
> Perfect for interior transaction windows and showcase cabinets

27
(1 1/16")
(5/16") Calculations:
8
Glass height: C = X – (25 + 8)
(31/32" + 5/16")

14.5
(9/16")

7
25 (31/32")

Sliding and Roller Shutter Systems
18.5
(23/32")

1 End cap 3 Glass profile grip 5 Lock housing and cylinder core
33
33
(1 5/16") (1 5/16")
2.5 2.5
(3/32") (1/8")
IA
D

415.13.020 415.13.170 233.02.420
F F
G 2 End cap 4 Glass profile grip
D
(1 5/16")
D1 D2 33
2.5 G 2.5 G Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(3/32") (3/32")
Glass width calculation D (D1 and D2):
CN = number of doors
IA = internal cabinet width 415.13.021 415.13.010 Running gear installation
F = gap into glass profile
G = door overlap

(CN–1)xG+IA
1, 3 D1 = 5 – (2xF)
CN
(CN–1)xG+IA
2 , 4 , 5 D2 = (2xF)
CN

FC 7.78 www.hafele.com/us
