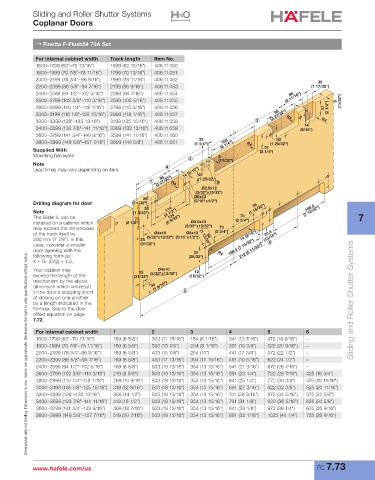

Sliding and Roller Shutter Systems
Coplanar Doors

→ Finetta F-Flush54 70A Set

For internal cabinet width Track length Item No.
1600–1799 (63"–70 13/16") 1599 (62 15/16") 406.11.050
1800–1999 (70 7/8"–78 11/16") 1799 (70 13/16") 406.11.051
2000–2199 (78 3/4"–86 9/16") 1999 (78 11/16") 406.11.052 39
2200–2399 (86 5/8"–94 7/16") 2199 (86 9/16") 406.11.053 (1 17/32")
2400–2599 (94 1/2"–102 5/16") 2399 (94 7/16") 406.11.054 94
2600–2799 (102 3/8"–110 3/16") 2599 (102 5/16") 406.11.055 (3 11/16") 9 (11/32")
2800–2999 (110 1/4"–118 1/16") 2799 (110 3/16") 406.11.056 57 (2 1/4")
98
3000–3199 (118 1/8"–125 15/16") 2999 (118 1/16") 406.11.057 (3 27/32") R4
3200–3399 (126"–133 13/16") 3199 (125 15/16") 406.11.058 R4
14
3400–3599 (133 7/8"–141 11/16") 3399 (133 13/16") 406.11.059 (9/16")
3600–3799 (141 3/4"–149 9/16") 3599 (141 11/16") 406.11.060
32
45
159
3800–3999 (149 5/8"–157 7/16") 3699 (145 5/8") 406.11.061 (1 1/4") (6 1/4") R4 (1 25/32")
57
Supplied With (2 1/4")
Mounting hardware 9
(11/32")
Note
Lead times may vary depending on item. 14 (9/16") 45
(3 27/32") R4 (1 25/32")
98
Ø2.5x12
(3/32"x15/32")
26 Ø8x13
Drilling diagram for door (1 1/32") (5/16"x1/2") 36
28 114 (1 15/32") 188.5
Note (1 3/32") (4 1/2") (7 13/32")
134
The Slider L can be 73 (5 9/32") 70 7
installed on a cabinet which (2 7/8") Ø2.5x12 (2 3/4")
may exceed the dimensions (3/32"x15/32") 70
of the track itself by Ø4x10 Ø8x13 36 (2 3/4") 14 (9/16") 20.5
(5/16"x1/2")
200 mm (7 7/8"). In this 25 (5/32"x13/32") (1 13/32") (13/16")
case, consider a smaller (31/32") 188.5 (7 13/32")
door opening with the 20 212 (8 11/32")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
following formula: (25/32") R4
X + G- (O/2) + 4.5.
Your cabinet may 25 Ø4x10 12
exceed the length of the (31/32") (5/32"x13/32") (15/32")
mechanism by the above
dimension which will result 40 (1 9/16")
in the door's stopping short
of closing on one another
by a length indicated in the Sliding and Roller Shutter Systems
formula. See to the door
offset equation on page
7.72.
For internal cabinet width 1 2 3 4 5 6
1600–1799 (63"–70 13/16") 169 (6 5/8") 303 (11 15/16") 154 (6 1/16") 341 (13 7/16") 472 (18 9/16") –
1800–1999 (70 7/8"–78 11/16") 169 (6 5/8") 353 (13 7/8") 204 (8 1/16") 391 (15 3/8") 522 (20 9/16") –
2000–2199 (78 3/4"–86 9/16") 169 (6 5/8") 403 (15 7/8") 254 (10") 441 (17 3/8") 572 (22 1/2") –
2200–2399 (86 5/8"–94 7/16") 169 (6 5/8") 453 (17 13/16") 304 (11 15/16") 491 (19 5/16") 622 (24 1/2") –
2400–2599 (94 1/2"–102 5/16") 169 (6 5/8") 503 (19 13/16") 354 (13 15/16") 541 (21 3/16") 672 (26 7/16") –
2600–2799 (102 3/8"–110 3/16") 219 (8 5/8") 503 (19 13/16") 354 (13 15/16") 591 (23 1/4") 722 (28 7/16") 425 (16 3/4")
2800–2999 (110 1/4"–118 1/16") 269 (10 9/16") 503 (19 13/16") 354 (13 15/16") 641 (25 1/4") 772 (30 3/8") 475 (18 11/16")
3000–3199 (118 1/8"–125 15/16") 319 (12 9/16") 503 (19 13/16") 354 (13 15/16") 691 (27 3/16") 822 (32 3/8") 525 (20 11/16")
3200–3399 (126"–133 13/16") 369 (14 1/2") 503 (19 13/16") 354 (13 15/16") 741 (29 3/16") 872 (34 5/16") 575 (22 5/8")
3400–3599 (133 7/8"–141 11/16") 419 (16 1/2") 503 (19 13/16") 354 (13 15/16") 791 (31 1/8") 922 (36 5/16") 625 (24 5/8")
3600–3799 (141 3/4"–149 9/16") 469 (18 7/16") 503 (19 13/16") 354 (13 15/16") 841 (33 1/8") 972 (38 1/4") 675 (26 9/16")
3800–3999 (149 5/8"–157 7/16") 519 (20 7/16") 503 (19 13/16") 354 (13 15/16") 891 (35 1/16") 1022 (40 1/4") 725 (28 9/16")

www.hafele.com/us FC 7.73
