Sliding and Roller Shutter Systems
Coplanar Doors

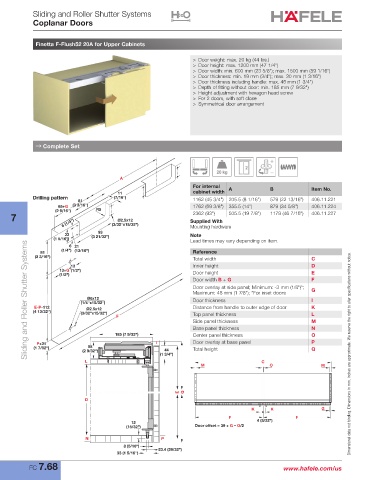

Finetta F-Flush52 20A for Upper Cabinets

> Door weight: max. 20 kg (44 lbs.)
> Door height: max. 1200 mm (47 1/4")
> Door width: min. 600 mm (23 5/8"); max. 1500 mm (59 1/16")
> Door thickness: min. 19 mm (3/4"); max. 30 mm (1 3/16")
> Door thickness including handle: max. 45 mm (1 3/4")
> Depth of fitting without door: min. 185 mm (7 9/32")
> Height adjustment with hexagon head screw
> For 2 doors, with soft close
> Symmetrical door arrangement

→ Complete Set

A
For internal A B Item No.
11 cabinet width
Drilling pattern (7/16") 1162 (45 3/4") 205.5 (8 1/16") 579 (22 13/16") 406.11.221
81
65+G (3 3/16") 1762 (69 3/8") 355.5 (14") 879 (34 5/8") 406.11.224
(2 9/16") R5 2362 (93") 505.5 (19 7/8") 1179 (46 7/16") 406.11.227
7 Ø2.5x12
6 (1/4") (3/32"x15/32") Supplied With
Mounting hardware
93
33 (3 21/32") Note
(1 5/16") Lead times may vary depending on item.
Sliding and Roller Shutter Systems
6 21
(1/4") (13/16")
81 Reference
(3 3/16") Total width C
13 Inner height D
13+G (1/2")
(1/2") Door height E
Door width B + G F
Door overlay at side panel; Minimum: -3 mm (1/8")*; G
Maximum: 48 mm (1 7/8"); *For inset doors
Ø6x12 Door thickness I
(1/4"x15/32")
E-P-112 Ø2.5x12 Distance from handle to outer edge of door K
(4 13/32") (3/32"x15/32")
F Top panel thickness L
Side panel thickness M
Base panel thickness N
185 (7 9/32") Center panel thickness O
P+31 I Door overlay at base panel P
(1 7/32") 58 Total height Q
(2 9/32") 44
(1 3/4") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
L C
M O M

E Q
D
K K G
F F
12 4 (5/32")
(15/32") Door offset = 39 + G – O/2
N P
8 (5/16")
23.4 (29/32")
33 (1 5/16")
